Gaoxin Industrial Park, Guangming ใหม่เขตเมืองเซินเจิ้มณฑลกวางตุ้งประเทศจีน | Angelwang66@126.com |
Place of Origin: | Shenzhen, China |
ชื่อแบรนด์: | SCED |
ได้รับการรับรอง: | UL, CE |
Model Number: | TR175-01-BM0 |
Minimum Order Quantity: | 500 |
---|---|
ราคา: | Get latest price |
Packaging Details: | Standard Export Carton |
Delivery Time: | 7-20 working days |
Payment Terms: | T/T |
Supply Ability: | 1KK poles each monthly |
Applications: | PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control | Color: | Black |
---|---|---|---|
Number of Contacts: | Any Poles Available | Pitch: | 32.00mm |
Rated Current: | 175A | Rated Voltage: | 600V |
Type: | High Current Barrier Terminal Block, Power terminal blocks, Electrical terminal Blocks | Wire Range: | 3/0-20 |
แสงสูง: | wiring terminal blocks,pcb wire terminals |

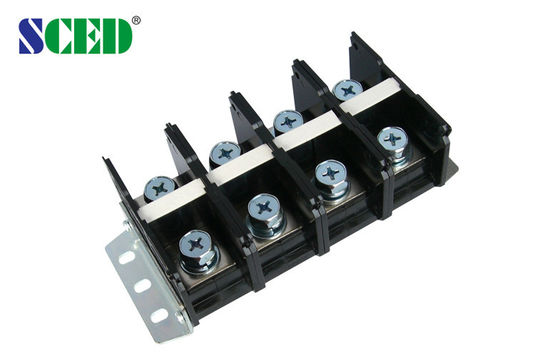

32mm Right Angle High Current Terminal Block For Power Supply 600V 175A
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
600 / 175 |
600 / 175 |
|
Wire Range AWG |
3/0-20 |
3/0-20 |
|
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
800 / 175 |
1000 / 175 |
1000 / 175 |
Rated Surge Voltage KV |
8 |
8 |
8 |
Rated Connecting Capacity mm2 |
80 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PC / UL94, V-0 |
||
Terminal / Plating |
Brass / Nickel Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
Stripping Length mm |
14-18 |
||
Screw / Torque / lbf.in |
M8 / 31-40 |
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
ผู้ติดต่อ: Miss. Angel
โทร: 1598940345
แฟกซ์: 86-755-3697544
