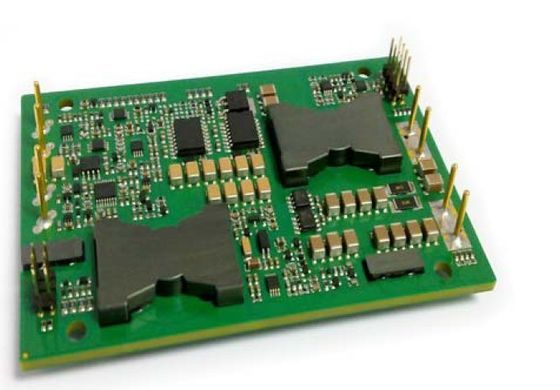

Low noise military power supplies modules dc-dc Output 45V ZG800-250S45-POC

Low noise military power supplies modules dc-dc Output 45V ZG800-250S45-POC

Low noise military power supplies modules dc-dc Output 45V ZG800-250S45-POC

รายละเอียดสินค้า:

Place of Origin: China
ชื่อแบรนด์: Enargy
Model Number: ZG800-250S45-POC

การชำระเงิน:

Minimum Order Quantity: 1pcs
ราคา: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 15000Pcs/week
ติดต่อตอนนี้
รายละเอียดสินค้า

Military Power Supply 800W Output 45V ZG800-250S45-POC





Key Features

Output power: 800W

Wide input range: 180-340Vdc

High conversion efficiency: Up to 93%

Line regulation to ±0.5%

Load regulation to ±0.5%

Fixed operating frequency

Isolation voltage :1500V

Load sharing to 20 units

Enable (ON/OFF) control

Output over-load protection

Hiccup mode short circuit protection

Over-temperature protection

Input under-voltage lock-out

Output voltage trim: ±2%



Product Overview

These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency Active Clamp switching provides high power density with low noise and high efficiency.



Product’s Introduction

The ZG series is an independently regulated single output converter that uses the industry nonstandard brick package size. The very high efficiency is a result of ENARGY CORP patented topology that uses synchronous rectification and an innovative construction design to minimize heat dissipation and allow extremely high power densities. The power dissipated by the converter is so low that a heat sink is not required, which saves cost, weight, height, and application effort. All of the power and control components are mounted to the multi-layer PCB substrate with highyield surface mount technology, resulting in a more reliable product.



1. Electric Characteristics

Electrical characteristics apply over the full operating range of input voltage, output load and base plate temperature, unless otherwise specified. All temperatures refer to the operating temperature at the center of the base plate. All data testing at Ta=25oC except especial definition.



1.1 Absolute Maximum Ratings

Parameter

Min

Typ

Max

Units

Notes

Input Voltage





360

Vdc

Continuous, non-operating





340

Vdc

Continuous, operating





360

Vdc

Operating transient protection,<100mS

Isolation Voltage





2000

Vdc

Input to Output

Operating Temperature

-55



100



Storage Temperature

-65



115



Enable to Vin- Voltage

-2.0



10

Vdc





1.2 Input Characteristics

Parameter

Min

Typ

Max

Units

Notes

Input Voltage Range

180

250

340

Vdc

Continuous

Under-Voltage Lockout



177

179

Vdc

Turn-on Threshold; min. load

125

150



Vdc

Turn-off Threshold; half load

Maximum Input Current





5.5

A

Full Load;180Vdc Input

Efficiency



93



%

Full Load; Rating Input voltage;

Figures 1-2

Disabled Input Current



20



mA

Enable pin low

Recommend External Input

Capacitance



100



μF

Typical ESR 0.1-0.2Ω



1.3 Output Characteristics

Parameter

Min

Typ

Max

Units

Notes

Output Voltage Set point

44.55

45.00

45.45

Vdc

Nominal input; Min load

Output Voltage Range

44.1

45.00

45.9

Vdc



Output Current Range

1



17.8

A

Subject to thermal derating. Figure 3-4

Line Regulation



±0.02

±0.5

%

Low line to high line; full load

Load Regulation



±0.02

±0.5

%

Min. load to full load; nominal input

Temperature Regulation



±0.01

±0.02

% / °C

Over operating temperature range

Current Limit

18.69

21

23.2

A

Output voltage 95% of nominal

Short Circuit Current

1

21

23.2

A

Output voltage <250 mV

Ripple (RMS)



80



mV

Nominal input; full load; 20 MHz

bandwidth, Figure 9

Noise(Peak-to-Peak)



450



mV

Maximum Output Cap.



1200



μF

Nominal input; full load

Output Voltage Trim

+2



-2

%

Nominal input; full load



1.4 Dynamic Response Characteristics

Parameter

Min

Typ

Max

Units

Notes

Change In Output Current

(di/dt= 0.1A/μs)



1300



mV

Nominal input,50% to 75% to 50% Iout max; Figure 7

Change In Output Current

(di/dt= 2.5A/μs)



1800



mV

Nominal input ,50% to 75% to 50% Iout max; Figure 8

Settling Time



400



μS

To within 1% Vout nom.

Turn-on Time



20



mS

Full load; Vout=90% nom. Figure 5

Shut-down Fall Time



300



μS

Full load; Vout=10% nom. Figure 6

Output Voltage Overshoot



5



%





1.5 Functional Characteristics

Parameter

Min

Typ

Max

Units

Notes

Switching Frequency

180

200

220

KHz

Regulation stage and Isolation stage

Trim(Pin21)

See part 7.4 Voltage Trim(Pin21)

Output Voltage Trim





2

%

Trim Up, Trim Pin toVout(-)

2





%

Trim Down, Trim Pin to Vout (+)

Enable(ON/OFF)Control(Pin11)

See part 7.1

Enable Voltage

Enable Source Current



2



Vdc

Enable pin floating



1



mA



Enable (ON/OFF) control

Positive Logic

2.5



10

Vdc

ON-Control, Logic high or floating

-0.5



0.2

Vdc

OFF-Control, Logic low

Vaux voltage(pin13)

See part 7.8

Vaux Voltage

Vaux Source Current



8.5



Vdc

Auxiliary output voltage



20



mA



Over-Load Protection

105

120

130

%

Current-Mode, Pulse by Pulse Current

Limit Threshold,(%Rated load)

Short -Circuit Protection





80

Type: Hiccup Mode, Non-Latching,

Auto-Recovery,Threshold,Short-Circuit

Resistance

Over-Temperature

Protection



105



Type: Non-Latching, Auto-Recovery;

Threshold, PCB Temperature



15



Hysteresis



1.6 Isolation Characteristics

Parameter

Min

Typ

Max

Units

Notes

Isolation Voltage

1500





Vdc

Input to Output

1500





Vdc

Input to Base

500





Vdc

Output to Base

Isolation Resistance

100





At 500Vdc to test it when atmospheric pressure and R.H. is 90%

Isolation Capacitance



1000



pF





2. General Characteristics

Parameter

Min

Typ

Max

Units

Notes

Weight



6.1(170)



Oz (g)

Encapsulated

MTBF ( calculated )

1





MHrs

TR-NWT-000332;80% load,300LFM,

40℃ Ta



3. Environmental Characteristics

Parameter

Min

Typ

Max

Units

Notes

Operating Temperature

-55



+100

Extended, base PCB temperature

Storage Temperature

-65



+115

Ambient

Temperature Coefficient





±0.02

%/℃



Humidity

20



95

%R.H.

Relative Humidity, Non - Condensing



4. Standards Compliance

Parameter

Notes

UL/cUL60950



EN60950



GB4943



Needle Flame Test (IEC 695-2-2)

Test on entire assembly; board & plastic components UL94V-0 compliant

IEC 61000-4-2





5. Qualification Specification

Parameter

Notes

Vibration

10-55Hz sweep, 1 min./sweep, 120 sweeps for 3 axis

Mechanical Shock

100g min, 2 drops in x and y axis, 1 drop in z axis

Cold(in operation)

IEC60068-2-1 Ad

Damp Heat

IEC60068-2-67 Cy

Temperature Cycling

-40°C to 100°C, ramp 15°C/min., 500 cycles

Power/Thermal Cycling

Vin = min to max, full load, 100 cycles

Design Marginality

Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load

Life Test

95% rated Vin and load, units at derating point, 1000 hours

Solderability

IEC60068-2-20



6. Typical Wave And Curves

Low noise military power supplies modules dc-dc Output 45V ZG800-250S45-POC

Figure 1: Efficiency at nominal output voltage vs. load current for minimum, nominal, and maximum input voltage at 25°C.



Low noise military power supplies modules dc-dc Output 45V ZG800-250S45-POC

Figure 2: Power dissipation at nominal output voltage vs. load current for minimum, nominal, and maximum input voltage at 25°C.



Low noise military power supplies modules dc-dc Output 45V ZG800-250S45-POC

Figure 3: Maximum output power derating curves vs. ambient air temperature for airflow rates of 0 LFM through 800 LFM with air flowing from pin 1 to pin 4 (nominal input voltage).



Low noise military power supplies modules dc-dc Output 45V ZG800-250S45-POC

Figure 4: Thermal plot of converter at full load current (800W) with 25°C air flowing at the rate of 800 LFM. Air is flowing across the converter from pin 1 to pin 4 (nominal input voltage).



Low noise military power supplies modules dc-dc Output 45V ZG800-250S45-POC

Figure 5: Turn-on transient at full load (resistive load) (20 ms/div).Input voltage pre-applied. Ch 1: Vout (20V/div).Ch 2: ON/OFF input(2V/div)



Low noise military power supplies modules dc-dc Output 45V ZG800-250S45-POC

Figure 6: Shut-down fall time at full load (1 ms/div). Ch 1: Vout (20V/div).Ch 2: ON/OFF input (2V/div).



Low noise military power supplies modules dc-dc Output 45V ZG800-250S45-POC

Figure 7: Output voltage response to step-change in load current (50%-75%-50% of Iout(max); dI/dt = 0.1A/μs).. Load cap: 10μF, 100 mW ESR tantalum capacitor and 1μF ceramic capacitor. Ch 1: Vout (1V/div).



Low noise military power supplies modules dc-dc Output 45V ZG800-250S45-POC

Figure 8: Output voltage response to step-change in load current (50%-75%-50% of Iout(max): dI/dt = 2.5A/μs).. Load cap: 10μF, 100 mW ESR tantalum capacitor and 1μF ceramic capacitor. Ch 1: Vout (1V/div).



Low noise military power supplies modules dc-dc Output 45V ZG800-250S45-POC

Figure 9: Output voltage ripple at nominal input voltage and rated load current (200mV/div). Load capacitance: 1μF ceramic capacitor and 10μF tantalum capacitor Bandwidth: 20 MHz.



7. Physical Information

7.1 Mechanical Outline

Low noise military power supplies modules dc-dc Output 45V ZG800-250S45-POC



Notes:

1. Pins 1-8 are 0.6” (1.52mm) dia. without shoulders.

2. Pins 9-22 are 0.025”(0.64mm) Square.

3. Pin 9 to 14 referenced to Vin(-). Pin 15 to 22 referenced to Sense(-).

4. Tolerances: x.xx ±0.02 in. (x.x ±0.5mm), x.xxx ±0.010 in. (x.xx ±0.25mm).



7.2 Pin Designations

Pin No.

Name

Function

1

Vin(+)

Positive input voltage

2

Vin(+)

Positive input voltage

3

Vin(-)

Negative input voltage

4

Vin(-)

Negative input voltage

5

Vout(-)

Negative output voltage

6

Vout(-)

Negative output voltage

7

Vout(+)

Positive output voltage

8

Vout(+)

Positive output voltage

9

Phase Shift

To reduce the input reflected ripple current and to reduce the load transient response time

10

TSB

Thermal Shut-Down Bus

11

Enable

TTL input to turn converter ON and OFF, referenced to Vin(-), with internal pull up.

12

Sync-In

The operating frequency is set to 200KHz and can be synchronized by an

external clock connected between the Sync-In pin and ground (-)Vin.

13

Vaux

Auxiliary output voltage

14

Temp.

Monitor

No use

15

Sync-Out

This pin contains a clock signal referenced to the Sense(-) pin.

16

ORing FET

Drive

The FET Drive pin provides a DC voltage of about 10V above the main output

17

Load

Sharing

Two or more modules can be operated in parallel for either redundant operation or additional

power requirements.

18

Power Good

The Power Good pin indicates the operating state of the module

19

Current

Monitor

Output current can be measured from this pin.

20

Sense(-)

Negative remote sense. SENSE(-) may be connected to Vout(-) or left open.

21

Trim

Output voltage trim. Leave TRIM pin open for nominal output voltage.

22

Sense(+)

Positive remote sense. SENSE(+) may be connected to Vout(+) or left open.
