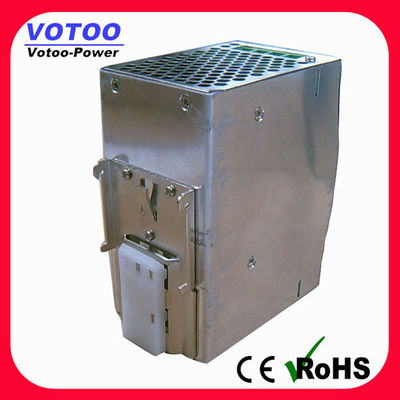

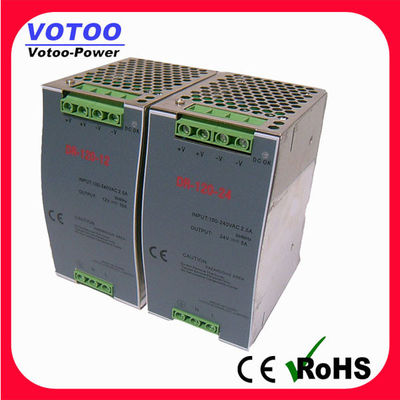

High Efficiency Metal 120W Single Output IN Rail Power Supply 12V 10A

รายละเอียดสินค้า:

Place of Origin:	China
ชื่อแบรนด์:	VOTOO
ได้รับการรับรอง:	CE,ROHS
Model Number:	VP-1202000

การชำระเงิน:

Minimum Order Quantity:	100pcs
ราคา:	negotiation
Packaging Details:	white box
Delivery Time:	5-10 days
Payment Terms:	Ex works
Supply Ability:	1, 000, 000PCS/week

ติดต่อ

รายละเอียดสินค้า

แสงสูง:

regulated power supply

din rail mount power supply

regulated dc power supply

High Efficiency Metal 120W Single Output IN Rail Power Supply 12V 10A

Quick Detail:

120W Single Output IN Rail Power Supply
Type: switching power supply
Material: Metal
Certificate: CE & RoHS
Package: white paper box
Warranty: 1 year
100% burning in before shipping

Features:

o Universal Input 100~240VAC 50/60Hz

o Output Voltage: 12V

o Output Current:10A

o Power: 120Watt

o Ripple & Noise: 1% of Output Voltage

o High Efficiency

o Short Circuit Protection

o Over Voltage Protection

o Over Current Protection

o Green Circuit Design

Weight: 740g

o Dimensions: 145mm*125*85 mm

Specification:

OUTPUT	DC VOLTAGE	12V
	OUTPUT POWER	120W
	CURRENT RANGE	10A
INPUT	VOLTAGE RANGE	110VAC -264V AC
	FREQUENCY RANGE	50-60Hz
	EFFICIENCY(Typ.)	80%
ENVIRONMENT	WORKING TEMP.	-0°C ~ +40°C (Refer to output load derating curve)
	STORAGE TEMP.,HUMIDITY	-10°C ~ +70°C 10~95% RH
	COOLING METHOD	BY FREE AIR CONVECTION

How to Install?

Before connecting check whether the power supply fullfields electrical specification Connect
power supply to the supplied unit.
Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
Do not install power supply in locations with high humidity, dust or strong direct sunlight.
The powersupply should be installed in a location with good airflow.
Power supply can only be installed indoors.

Applications:

industrial automation control, military industry equipment, scientific research equipment, LED lighting, industrial control equipment, communications equipment, electrical equipment, instrumentation, medical equipment, semiconductor refrigeration and heating, air purifier, electronic refrigerator, LCD, LED lamps and lanterns, communications equipment, audio and video products, security monitoring, leds bags, computer case, digital products and instruments, etc.
