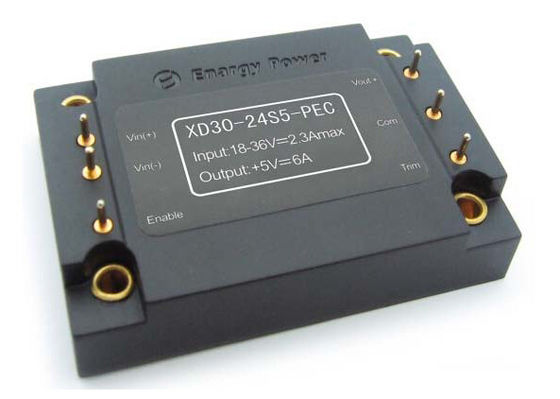

DC-DC Converters 30W Output 5V XD30-24S5-PEC



Features:

Wide input range: 18-36 V

Output power: 30W

High conversion efficiency: 91%

Line regulation to: ±1%

Load regulation to: ±1%

Input under-voltage lock-out

Output voltage trim -8~+10 % Vout

Output over-current protection

Hiccup mode short circuit protection

Output over-voltage protection

Enable (On/Off) Control

Isolation Voltage: 1500Vdc

Product Overview

These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High

frequency Active Clamp switching provides high power density with low noise and high efficiency.



1. Electric Characteristics

1.1Absolute Maximum Ratings

Parameter Min Typ Max Units Notes
Input Voltage     40 Vdc Continuous, non-operating
    36 Vdc Continuous, operating
    40 Vdc Impulse voltage,<100ms,operating
Isolation voltage     2000 Vdc Input to output
Operating Temperature -40   100 In view of PCB Temperature
Storage Temperature -55   105
Enable to -Vin Voltage -2   10 Vdc



1.2Input Characteristics

Parameter Min Typ Max Units Notes
Input Voltage Range 18 24 36 Vdc
Input Under-Voltage Lockout 17.0 17.5 17.9 Vdc Recovery point
16.0 16.5 17.0 Vdc Protect point
Maximum Input Current     2.3 A Vin min,output full load
Efficiency   90   % Rated input;rated load
Dissipation,Standby   2 4 W No load



1.3Output Characteristics

Parameter Min Typ Max Units Notes
Output Voltage Set point 4.95 5.00 5.05 Vdc Rated input voltage,No load
Output Voltage Range 4.90 5.00 5.10 Vdc
Output Current Range 0   6 A
Voltage Regulation   ±0.2 ±1 %
Load Regulation   ±0.2 ±1 %
Current Limit   8.4   A 90% of the rated output voltage
Short Circuit Current   10 20 A
RMS   15   mV

Nominal input; full load;

20MHz,bandwidth

peak-to-peak   75   mV
Capacitive load from the machine 100   4000 μF



1.4Dynamic Response Characteristics

Parameter Min Typ Max Units Notes
Change in Output Current   250   mV

Load change50%~75%~50% Iout max,di/dt=

0.1A/μS

  250   mV

Load change50%~75%~50% Iout max,di/dt=

2.5A/μS

Dynamic recovery time     320 uS
Turn-on Time   5   mS Starting from vin to vout rise to 90%
Turn-off overshoot     5 %



1.5 Functional Characteristics

Parameter Min Typ Max Units Notes
Switching Frequency 180 200 230 KHz
Output Voltage Trim     10 % Vout Trim Up
    8 Trim Down
Enable Current     1 mA
Enable (ON/OFF) 1   15 Vdc ON-control, Logic high or floating
-0.5   0.3 Vdc OFF-control, Logic low
Over-Voltage Protection 110   130 % No load
Over-Load Protection 110     % Current mode,Pulse current(100% rated load)
Short-Circuit Protection     65 Hiccup mode,since the recovery



1.6 Isolation Characteristics

Parameter Min Typ Max Units Notes
Isolation Voltage 1500     Vdc Input to Output
1500     Vdc In to base
500     Vdc Out to base
Isolation Resistance 10

At 500VDC to test it when atmospheric

pressure and R.H. is 90%.

Isolation Capacitance   1000   pF



2. General Characteristics

Parameter Min Typ Max Units Notes
Weight   50   g
MTBF ( calculated ) 1     MHrs

TR-NWT-000332; 80% load,300LFM,

40℃ Ta



3. Environmental Characteristics

Parameter Min Typ Max Units Notes
Operating Temperature -40   100 Extended, base PCB temperature
Storage Temperature -55   105 Ambient
Temperature Coefficient     ±0.02 %/℃
Humidity 20   95 %R.H.





4.Standards Compliance

Parameter Notes
MIL-STD-704
MIL-STD-1399
MIL-STD-810
UL/cUL60950
EN60950
GB4943
IEC 61000-4-2



5. WORK WAVE



30W DC-DC Converters module , 24 volt to 5 volt dc to dc converter XD30-24S5-PEC 030W DC-DC Converters module , 24 volt to 5 volt dc to dc converter XD30-24S5-PEC 1

Figure 1: Efficiency at nominal output voltage vs. load
current for minimum, nominal, and maximum input
voltage at 25°C.

Figure 2: Efficiency at nominal output voltage and 60%
rated power vs. airflow rate for ambient air
temperatures of 25°C.



30W DC-DC Converters module , 24 volt to 5 volt dc to dc converter XD30-24S5-PEC 230W DC-DC Converters module , 24 volt to 5 volt dc to dc converter XD30-24S5-PEC 3

Figure 3: Maximum output power derating curves vs.
ambient air temperature for airflow rates of 0 LFM
through 400 LFM with air flowing from pin 1 to pin 3
(nominal input voltage).

Figure 4: Output voltage ripple at nominal input voltage
and rated load current (20 mV/div). Load capacitance:
0.1μF ceramic capacitor and 10μF tantalum capacitor.
Bandwidth: 20 MHz.



30W DC-DC Converters module , 24 volt to 5 volt dc to dc converter XD30-24S5-PEC 430W DC-DC Converters module , 24 volt to 5 volt dc to dc converter XD30-24S5-PEC 5



Figure 5: Thermal plot of converter at full load
current(30W) with 25°C air flowing at the rate of 200
LFM. Air is flowing across the converter from pin 1 to
pin 3 (nominal input voltage).

Figure 6: Thermal plot of converter at full load
current(30W) with 25°C air flowing at the rate of 200
LFM. Air is flowing across the converter from input
to output (nominal input voltage).



30W DC-DC Converters module , 24 volt to 5 volt dc to dc converter XD30-24S5-PEC 630W DC-DC Converters module , 24 volt to 5 volt dc to dc converter XD30-24S5-PEC 7

Figure 7: Turn-on transient at full load (resistive load)
(10 ms/div).Input voltage pre-applied.
Ch1:Vout (5V/div)
Ch2:ON/OFF Input (1V/div)

Figure 8: Shut-down fall time at full load (10 ms/div).
Ch1:Vout (5V/div)
Ch2:ON/OFF Input (1V/div)



30W DC-DC Converters module , 24 volt to 5 volt dc to dc converter XD30-24S5-PEC 830W DC-DC Converters module , 24 volt to 5 volt dc to dc converter XD30-24S5-PEC 9

Figure 9: Output voltage response to step-change in
load current (50%-75%-50% of Iout(max); dI/dt =
0.1A/μs). Load cap: 10μF, 100 mΩ ESR tantalum
capacitor and 0.1μF ceramic capacitor. Ch1: Vout
(200mV/div)

Figure 10: Output voltage response to step-change in load
current (50%-75%-50% of Iout(max): dI/dt = 2.5A/μs).
Load cap: 10μF, 30 mΩ ESR tantalum capacitor and
0.1μF ceramic cap. Ch1: Vout (200mV/div)



6. Physical Information
6.1Mechanical Outline



30W DC-DC Converters module , 24 volt to 5 volt dc to dc converter XD30-24S5-PEC 10

Notes:
1. All pins are (1.02mm) dia.
2. Tolerances: x.x ±0.5mm, x.xx ±0.25mm



6.2 Pin Designations

Pin No. Name Function
1 Enable TTL input to turn converter on and off, referenced to Vin(-), with internal pull up.
2 Vin(-) Negative input voltage
3 Vin(+) Positive input voltage
4 Vout(+) Positive output voltage
5 Com Ground
6 Vout(-) Negative output voltage
