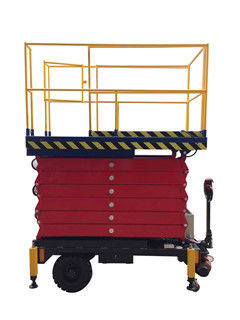

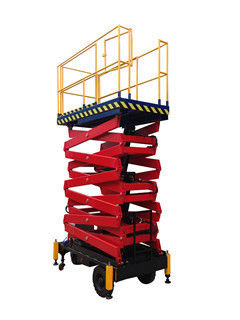

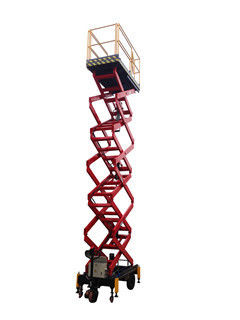

Scissor structure AC DC power supply mobile manlift for painting, cleaning

Scissor structure AC DC power supply mobile manlift for painting, cleaning

  • Scissor structure AC DC power supply mobile manlift for painting, cleaning
  • Scissor structure AC DC power supply mobile manlift for painting, cleaning
  • Scissor structure AC DC power supply mobile manlift for painting, cleaning
Scissor structure AC DC power supply mobile manlift for painting, cleaning
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: CHEN LIFT
ได้รับการรับรอง: CE
Model Number: SJZ0.3-16
การชำระเงิน:
Minimum Order Quantity: 1 set
ราคา: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or in Wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
ติดต่อ
รายละเอียดสินค้า
Loading Capacity: 300kg Platform Height: 16m
Platform Size: 2750mm*1500mm Minimum Height: 2000mm
Lifting Power: 2.2kw*2 Lifting Time: 130s
Weight: 2900kg Measurement: 3150*1740*2000MM
แสงสูง:

electric scissor lift

,

aerial mobile scissor lift

Scissor structure AC DC power supply mobile manlift for painting, cleaning





Quick Detail:



Name Mobile Scissor Lift Brand Name Xunte
Loading Capacity 300Kg Platform Height 16m
Platform Size 2750mm*1500mm Color Blue Color or Optional
Lifting Power 2.2Kw*2 Power Supply AC&DC / DC
Motorized Power 1.2Kw





Description:



Mobile Scissor lifts are also called as mobile elevated work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work or emergency access by firefighters. They are designed to lift limited weights and capable of being fully operated by a single person. They are narrow enough to be used in industrial settings and can be driven through narrow aisles with ease.



The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.





Main Features:



1. Pointing control of lifting up and down.

2. Manganese steel lifting arm in high strength with rectangle shape

3. Anti-skid floor in platform

4. The control panels are available on the platforms and ground.

5. Fine grinding cylinder in good sealing performance

6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.





Safety Precaution:



1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform





Major Parameters

  • Model:                          SJZ0.3-16
  • Loading Capacity         300kg
  • Maximum Height         16000mm
  • Minimum Height           2000mm
  • Platform Size               2750*1500mm
  • Lifting Power                2.2kw*2
  • Motorized Power:         1.2Kw
  • Power Voltage              DC24V
  • Lifting Time                  130s
  • Cylinder                       Ф100(1Pcs) Ф80 (4PCS)
  • Gear Pump                  6ml/r
  • Total Weight                2900kg
  • Measurement              3150*1740*2000MM



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack ,NOK sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø600-9 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
  • Battery: (DC12V,150AH)*4 with charger



Optional Configuration:

  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet



Applications:



1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





Why to choose Xunte Mobile Scissor Lift?



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1



A: How long is your quality guarantee period?

B: We have one year warranty.
