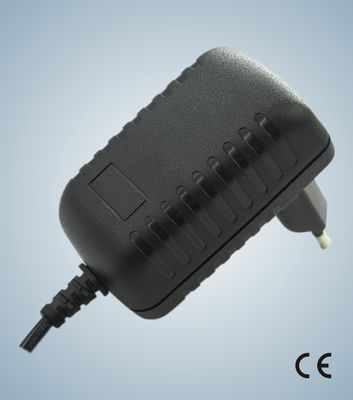

2.4W High Power Hybrid Power Supply For General Adapter, Medical and Laboratory Equipment

2.4W High Power Hybrid Power Supply For General Adapter, Medical and Laboratory Equipment

  • 2.4W High Power Hybrid Power Supply For General Adapter, Medical and Laboratory Equipment
2.4W High Power Hybrid Power Supply For General Adapter, Medical and Laboratory Equipment
รายละเอียดสินค้า:
Place of Origin: Guangdong, China (Mainland)
ได้รับการรับรอง: US,CCC,UL,CUL,CCC,GS,CE,FCC,EMC,BEAB,SAA,KETI
Model Number: KSAP2R4
การชำระเงิน:
Minimum Order Quantity: 1000PCS
ราคา: Negotiable
Packaging Details: PE bag+ white box
Payment Terms: T/T
Supply Ability: 1M/Month
FOB: Shenzhen Hongkong
ติดต่อ
รายละเอียดสินค้า
แสงสูง:

switching power supply adapter

,

switching adaptor power supply


2.4W High Power Hybrid Power Supply For General Adapter, Medical and Laboratory Equipment
Key  Features of  KSAP2R4

  Products highlights
●High Power Density
●EN60601 Medical Safety Approvals
●Optional Conformal Coating
●Operating temp Range ( 0℃ to 40℃)
Industrial shock and vibration(>50G)
●MTBF 50K hours@25℃ (MIL-HDBK-217F)
●ESD: air discharging±15KV, contact discharging±8KV

Key Applications of KSAP2R4
It’s suitable for an extremely wide Range of applications, including:
●General Adapter Use medical and laboratory equipment

Input

●Input     Voltage :   90 to 264 VAC
●Frequency  :           47-50/60-63hz
●Input      current :   0.15A(Max)
●Inrush    current :  60AMax.  240VAC
●Leakage current : 0.25 mA Max

Output

●Over voltage protection
●Over current protection
  at 150% of lo and Auto-recovery
●Electronic short circuit protection
●Ripple&noise 20MHZ bandwidth:200mV
●Operatingtemperature 0~40℃Free convection
●Sea level Non-operating temperature -20~80℃
●Operating humidity 10-90% RH Non Condensing

Safety standards

●Information technology equipment
●EN60601-1:1990+A1:1993+A2:1995

Certificates and approvals

●Test report for EN60601

EMI Emission

●Radiation Test&Conduction Test:EN 55022/FCC Part15
●Harmonic Test : EN 61000-3-2
●Flicker       Test : EN 61000-3-3

EMS immunity

●ESD   Test:EN 61000-4-2
●RS     Test:EN 61000-4-3
●EFT    Test:EN 61000-4-4
●Surge Test:EN 61000-4-5
●CS      Test:EN 61000-4-6
●DIP     Test:EN 61000-4-11


Mechanical SPEC

Dimension L*W*H (mm) : 65*36*27

2.4W High Power Hybrid Power Supply For General Adapter, Medical and Laboratory Equipment 0


Product tables for 2.4W

2.4W High Power Hybrid Power Supply For General Adapter, Medical and Laboratory Equipment 1

Packing & shipping

2.4W High Power Hybrid Power Supply For General Adapter, Medical and Laboratory Equipment 2

Down Load
2.4W High Power Hybrid Power Supply For General Adapter, Medical and Laboratory Equipment 3
