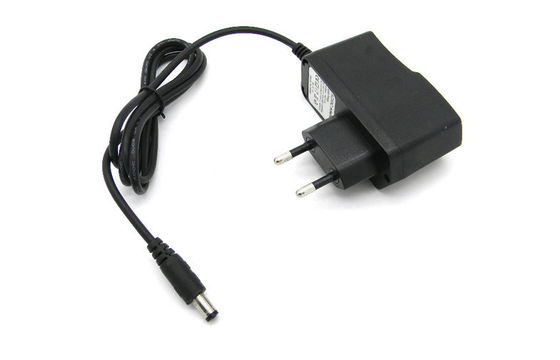

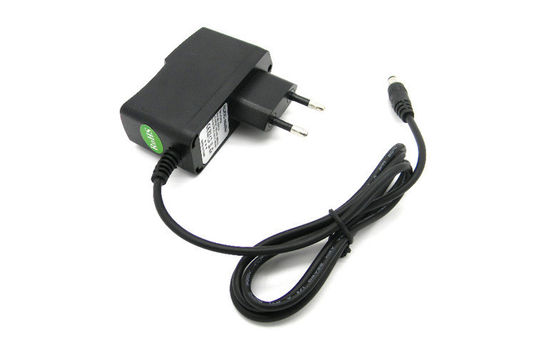

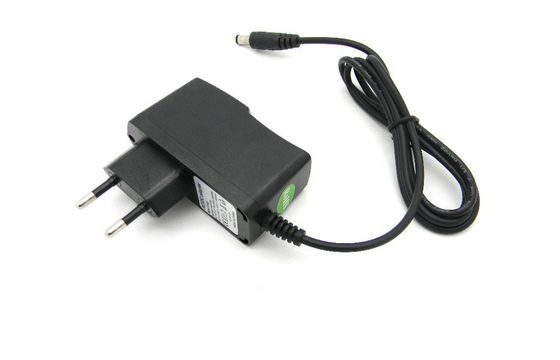

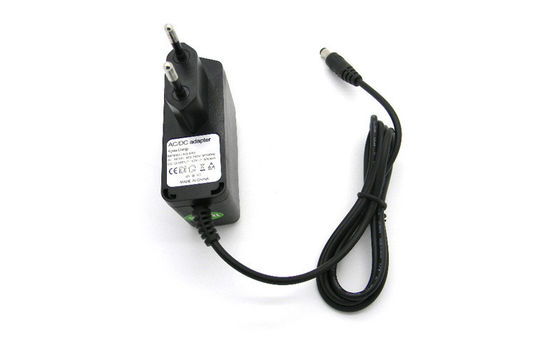

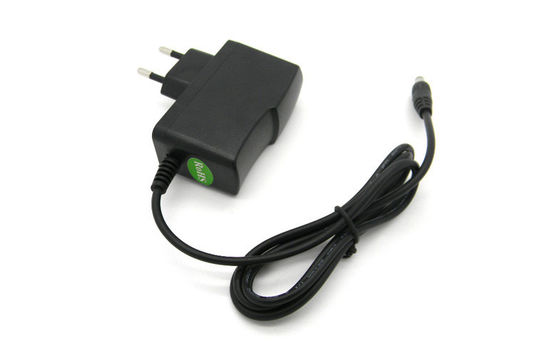

12V 500mA Wall Mount Power Adapter Impact Resistance RoHS For Telephones

รายละเอียดสินค้า:

Place of Origin:	Shenzhen,China
ชื่อแบรนด์:	RAYTOP
ได้รับการรับรอง:	CE, RoHS, FCC
Model Number:	RT-WMA-1200050

การชำระเงิน:

Minimum Order Quantity:	100 PCS
ราคา:	Negotiable
Packaging Details:	Environment-friendly PE bag, Master Carton, 200 PCS/Carton
Delivery Time:	15-20 working days.
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	200,000 Pcs per month

ติดต่อ

รายละเอียดสินค้า

AC Cable:	1.2M	Application 1:	Personal stereo
Application2:	Telephone charger	Application 3:	adapter for Game Machine
Application 4:	power adapter for Repeater	Application 5:	charger for Cell phones
MTBF:	50000 Hours	Output:	12V
Output Power:	6W	Product Name:	AC To DC Power Adapter
แสงสูง:	ac to dc power converter , wall plug adapter

12V 500mA Wall Mount Power Adapter Impact Resistance RoHS For Telephones

Quick Detail:

12V,500mA Wall mount power adapter, tip 5.5x2.1mm, with CE, RoHS, FCC, UL, SAA certificates. DC cable 24AWG, 1.2M length for different kinds of electronic devices usage.

Specs:

Input: AC100-240V, 300mA max.

Frequency: 50/60Hz

Output: DC12V, 500mA

DC Cable: 22AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC

Features:

-High efficiency:>82%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.

-Compact design, light weight, easy to carry.

Approval: CE, RoHS, FCC

Warranty: 2 years

Description:

This is an universal AC adapter come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.

Note:

indoor use only.

Applications:

used for radio, wireless telephone, CD, DVD devices, interphone, electronic organ etc.

Specifications:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	0.3A
	Inrush Current	30A
Output	Rated Output Voltage	DC12V
	Rated Output Current	500mA
	Rated Power	6W
	Ripple and Noise	150mV p-p
	Standby Power Consumption	0.3W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automatically recover after short circuit removed.
Reliability	Hi-pot	3000Vac
	Insulation Resistance	Input to output at 500Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 4 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC, UL, SAA
Warranty	2 Years
