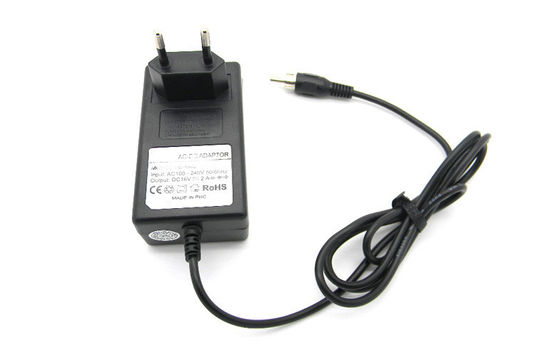

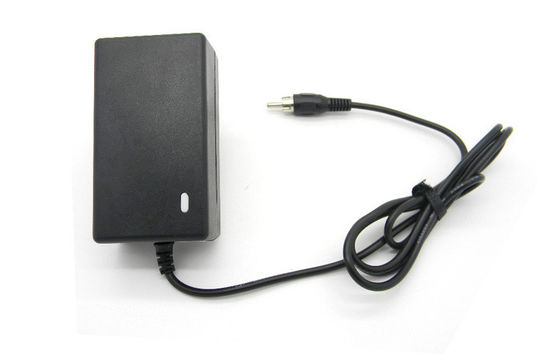

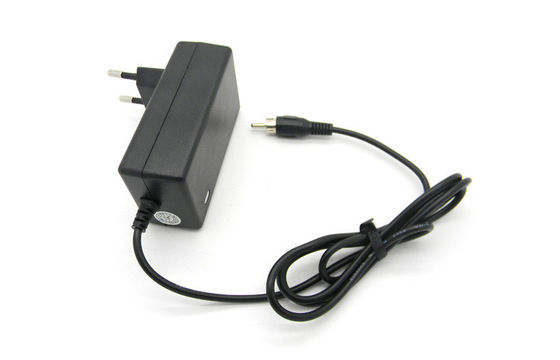

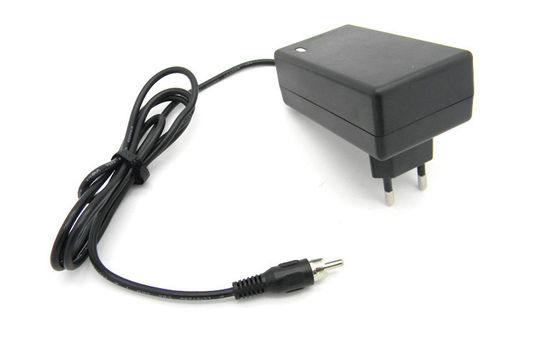

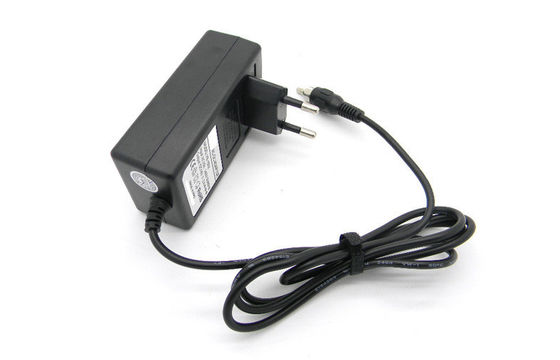

Short Circuit Wall Mount Power Adapter 16V 2A FCC Part 15 Class B For Cannon Printer

รายละเอียดสินค้า:

Place of Origin:	Shenzhen,China
ชื่อแบรนด์:	RAYTOP
ได้รับการรับรอง:	CE, RoHS, FCC
Model Number:	RT-WMA-1600200

การชำระเงิน:

Minimum Order Quantity:	1 PCS
ราคา:	US$1.9-2.3 per unit
Packaging Details:	White box, Color Box or Blister, 200 PCS/Carton
Delivery Time:	15-20 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	200,000 Pcs monthly.

ติดต่อ

รายละเอียดสินค้า

style:	wall mount power supply	used for:	adapter for security access control
Output:	16V 2A	Input:	AC100-240V
function 1:	charger for security camera	function 2:	charger for security appliance
function 3:	charger for security alarm system
แสงสูง:	ac to dc power converter , wall plug adapter

Short Circuit Wall Mount Power Adapter 16V 2A FCC Part 15 Class B For Cannon Printer

Quick Detail:

Switching mode power adapter, DC16V 2000mA, wall mount in conformity with CE, RoHS, FCC certification. We can design exclusive model for your market only.

Specs:

Input: AC100-240V, 500A max.

Frequency: 50/60Hz

Output: DC16V, 2000mA

DC Cable: 20AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC

Features:

-High efficiency:>82%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.

Approval: CE, RoHS, FCC

Warranty: 2 years

Description:

This is an universal AC adapter come with tuning fork connector, for special usage of Canon printer. It has high efficiency as well as steady performance.

Note:

indoor use only.

Applications:

used for cordless phone, sphygmomanometer,repeater etc.

Specifications:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	500mA
	Inrush Current	30A
Output	Rated Output Voltage	DC16V
	Rated Output Current	2000mA
	Rated Power	32W
	Ripple and Noise	150mV p-p
	Standby Power Consumption	0.5W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automatically recover after short circuit removed.
Reliability	Hi-pot	3000Vac
	Insulation Resistance	Input to output at 500Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 12 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC, UL, SAA
Warranty	2 Years
