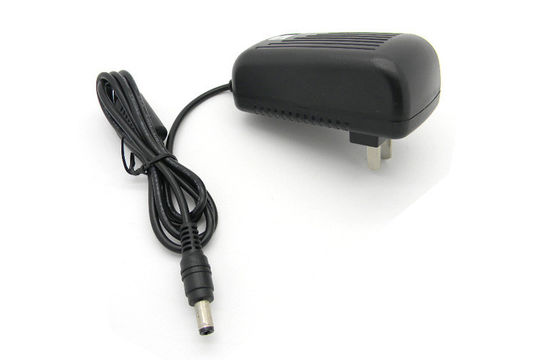

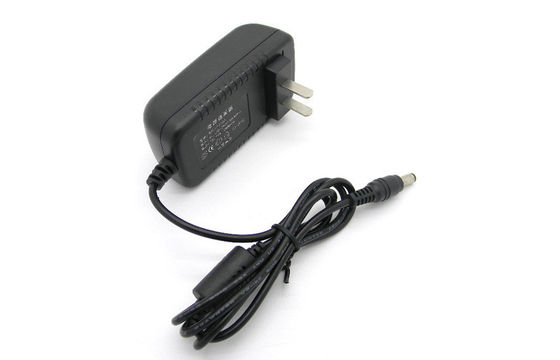

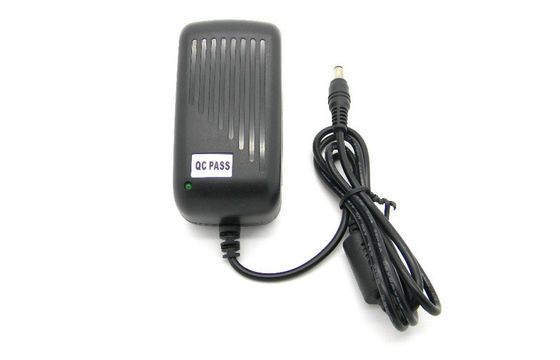

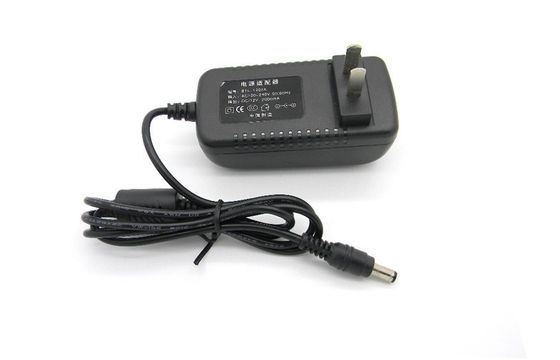

High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper

รายละเอียดสินค้า:

Place of Origin:	Shenzhen,China
ชื่อแบรนด์:	RAYTOP
ได้รับการรับรอง:	CE, RoHS, FCC
Model Number:	ET1200200

การชำระเงิน:

Minimum Order Quantity:	2K
ราคา:	Negotiable
Packaging Details:	PE Bag, Master Carton, Customer package available.
Delivery Time:	15-20 work days.
Payment Terms:	T/T, L/C
Supply Ability:	200,000 Pcs monthly.

ติดต่อ

รายละเอียดสินค้า

name:	Switching Power Adapter 12V	Place of Origin:	Shen Zhen ,Guang Dong,China
ได้รับการรับรอง:	UL/cUL/FCC/GS(LVD)/CE/EMC/PSE/3C/MEPS/BSMI/RCM/EUP CEC/Energy Star	DC Cable:	1.2M
Output:	12V 2A	Feature:	switch adapter 12v
Input:	AC100-240V	Operating Temperature:	0~40℃
application:	EU\|US\|UK\|SAA\|CCC
แสงสูง:	ac to dc power converter , wall plug adapter

High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper

Quick Detail:

Switching mode power adapter, DC12V 2A, Wall mount in conformity with CE, RoHS, FCC certification.

Specs:

Input: AC100-240V, 1.2A max.

Frequency: 50/60Hz

Output: DC12V, 2A

DC Cable: 22AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC

Features:

-High efficiency:>82%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.

Approval: CE, RoHS, FCC

Warranty: 2 years

Description:

This is an universal AC/DC adapter come with single output tip 5.5x2.1x10mm, mainly for CCTV security camera application. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.

Note:

indoor use only

Applications:

used for CCTV security camera.

Specifications:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	0.2A
	Inrush Current	30A
Output	Rated Output Voltage	DC12V
	Rated Output Current	2000mA
	Rated Power	24W
	Ripple and Noise	150mV p-p
	Standby Power Consumption	0.5W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automatically recover after short circuit removed.
Reliability	Hi-pot	3000Vac
	Insulation Resistance	Input to output at 500Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 4 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC, UL, SAA
Warranty	2 Years
