Place of Origin: | Shenzhen,China |
ชื่อแบรนด์: | RAYTOP |
ได้รับการรับรอง: | CE, RoHS, FCC |
Model Number: | RT-MPA-03121200A |
Minimum Order Quantity: | 100 PCS |
---|---|
ราคา: | Negotiable |
Packaging Details: | Gift box and blister, 200 PCS/Carton |
Delivery Time: | 15-20 working days. |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 20,000 Pcs per month. |
Input: | Australia Plug Universal AC Adapter | Cable Material: | Copper |
---|---|---|---|
DC Cable: | 1.2M | EMI Standards: | FCC Part 15B |
Voltage Selection Mananer: | Manual | MTBF: | 50000 Hours |
Output: | 3/5/6/7.5/9/12V DC | Output Power: | 12W |
Plug: | SAA | Protection: | Short Circuit, Over Voltage, Over Current |
แสงสูง: | Wall Mount Power Supply,ac to dc power converter |
Quick Detail:
Switching mode power adapter with multiple rated output voltage DC 3.0/5.0/6.0/7.5/9.0/12.0V. 8 different tips guarantee the great compatibility with many electronic devices such as Router, POS System, Security Cameras, Tablets etc.
Specs:
Input: AC100-240V, 200mA Max.
Frequency: 50/60Hz
Output: DC3.0/5.0/6.0/7.5/9.0/12.0V
DC Cable: 22AWG, Copper, length: 1.2M
Plug:SAA

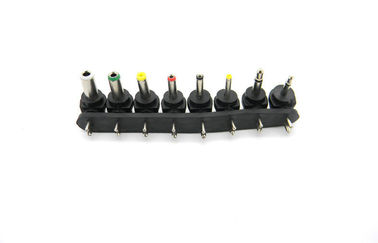

8 different size tips.
Features:
-High efficiency:>85%;
-Protection: Short circuit protection, over voltage protection, over current protection.
-MTBF: 50,000 hours.
Approval: CE, RoHS, FCC
Warranty: 2 years
Description:

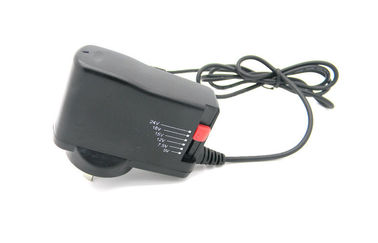

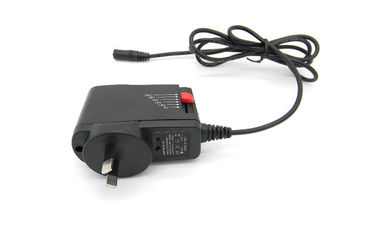

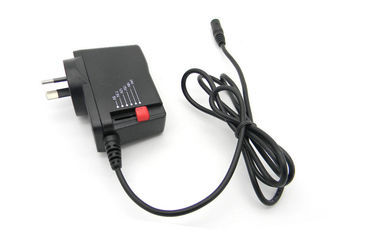

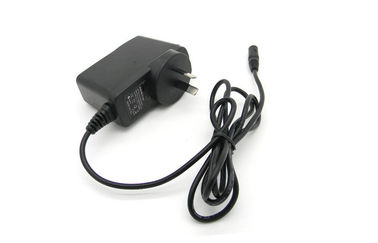

This is an universal AC adapter come with 8 different size tips, its output vary from 3.0 to 12.0 DC. It has high efficiency as well as steady performance.
Note: indoor use only.
Applications: widely used for Router, POS System, Security Cameras, Tablets etc.
Specifications:
Input |
Rated Input Voltage |
AC100~240V |
Input Voltage Range |
AC 90~264V |
|
Rated Frequency |
50/60 Hz |
|
Input Frequency Range |
47~63 Hz |
|
Input AC Current |
200mA |
|
Inrush Current |
30A |
|
Output |
Rated Output Voltage |
DC3/5/6/7.5/9/12V |
Rated Output Current |
1000mA |
|
Rated Power |
12W |
|
Ripple and Noise |
150mV p-p |
|
Standby Power Consumption |
0.3W |
|
Turn-on |
5s |
|
Hold-up |
20s |
|
Over Voltage Protection |
Yes |
|
Over Current Protection |
Yes |
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
Reliability |
Hi-pot |
3000Vac |
Insulation Resistance |
Input to output at 500Vdc |
|
Leakage Current |
5mA |
|
EMI Standards |
FCC Part 15B Class B |
|
RoHS Compliant |
Yes |
|
MTBF |
50,000 hours |
|
Burn-in |
40+/-5 ℃, full load, 12 hours |
|
Drop Test |
6 direction, each one time from height 1.0M |
|
Environmental |
Operating Temperature |
0~40℃ |
Operating Humidity |
10~80% |
|
Storage Temperature |
-20~65℃ |
|
Storage Humidity |
0~90% |
|
Safety Approvals |
CE, RoHS, FCC, UL, SAA |
|
Warranty |
2 Years |
Competitive Advantage:
-Open private model w/o extra cost for you;
-0.3% free backup of order quantity;
-Direct factory price without middle man.
-High performance-to-price ratio;
-Perfect after-sale service
