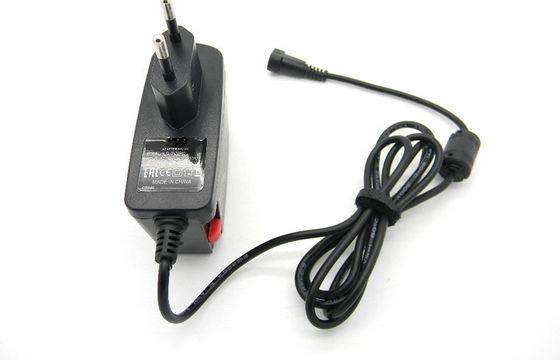

High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL

High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL

  • High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL
  • High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL
  • High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL
  • High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL
  • High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL
High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL
รายละเอียดสินค้า:
Place of Origin: Shenzhen,China
ชื่อแบรนด์: RAYTOP
ได้รับการรับรอง: CE, RoHS, FCC
Model Number: RT-MPA03123000A
การชำระเงิน:
Minimum Order Quantity: 100 PCS
ราคา: Negotiable
Packaging Details: Color box, 200PCS/Carton
Delivery Time: 15-20 working days.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200,000 Pcs monthly.
ติดต่อ
รายละเอียดสินค้า
Product Name: 3-12V Universal AC/DC Adapter Input: AC100-240V, 50/60Hz, 1.0A
Output: 3.0/4.5/5.0/6.0/9.0/12.0VDC Current: Max. 2500mA
AC Plug: EU,US, UK,SAA,CCC DC Cable: 24AWG, 1.2M
Protection: Short Circuit, Over Voltage,Over Current
แสงสูง:

Wall Mount Power Supply

,

ac to dc power converter



High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL





Quick Detail:



Switching mode power adapter with multiple rated output voltage DC 3.0

/5.0/6.0/7.5/9.0/12.0V. 8 different tips guarantee the great compatibility with many devices such as Router, POS System, Security Cameras, Tablets etc.





Specs:



Input: AC100-240V, 1.0A max.

Frequency: 50/60Hz

Output: DC3/5.0/6.0/7.5/9.0/12.0V

Output Current: 2500mA

DC Cable: 22AWG, Copper, length: 1.2M

Plug: EU, UK, CCC,US, SAA and other standards plugs

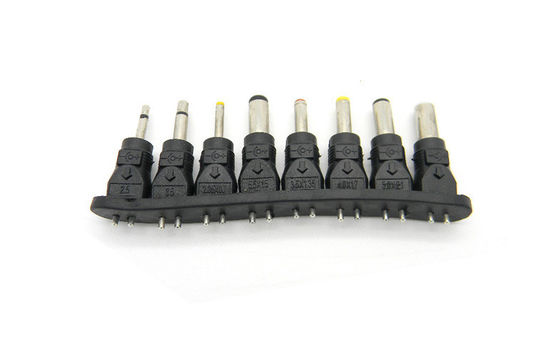

8 different size tips.





Features:



-High efficiency:>83%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.





Approval: CE, RoHS, FCC

Warranty: 2 years





Description:

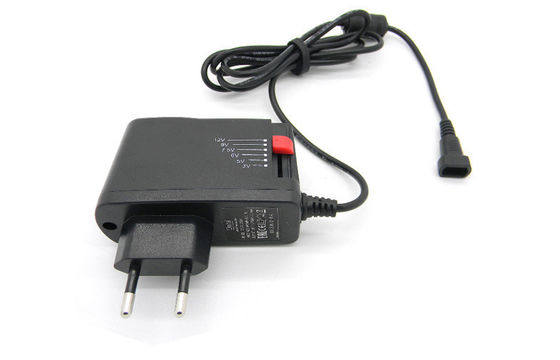

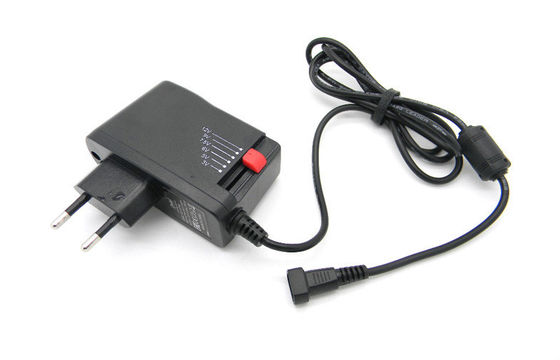

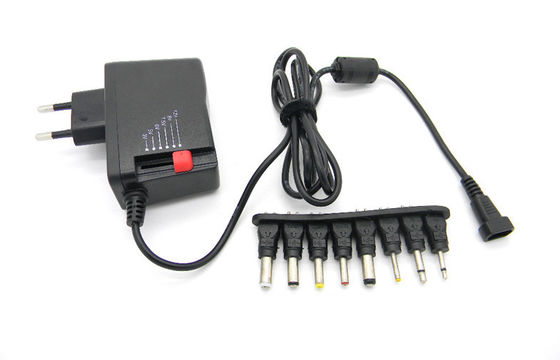

This is an universal AC adapter come with 8 different size tips, its output vary from 3.0 to 12.0 DC. The users can adjust the red switch slip to get the needed working voltage.

Note: in door use only.





Applications:



Widely used for Router, POS System, Security Cameras, Tablets etc.





Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

300mA

Inrush Current

30A

Output

Rated Output Voltage

DC3/5/6/7.5/9/12V

Rated Output Current

2500mA

Rated Power

30W

Ripple and Noise

150mV p-p

Standby Power Consumption

0.5W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 12 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC, UL, SAA

Warranty

2 Years





Competitive Advantage:



-Open private model w/o extra cost for you;

-0.3% free backup of order quantity;

-Direct factory price without middle man.

-High performance-to-price ratio;

-Perfect after-sale service

-
