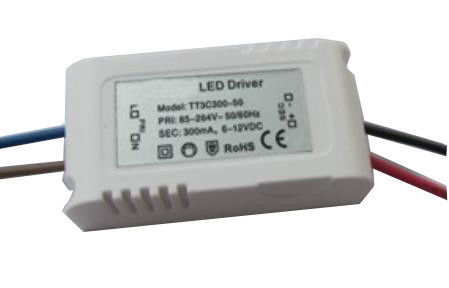

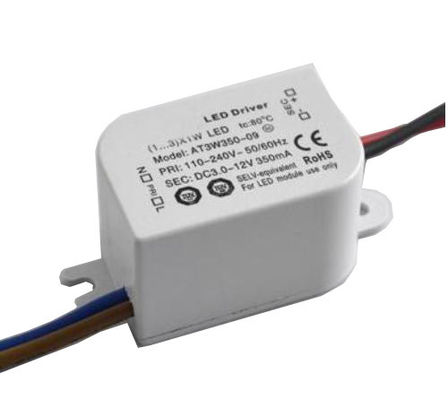

3W Low Power Constant Voltage Led Driver

3W Low Power Constant Voltage Led Driver

  • 3W Low Power Constant Voltage Led Driver
  • 3W Low Power Constant Voltage Led Driver
3W Low Power Constant Voltage Led Driver
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: STARWELL
ได้รับการรับรอง: UL,CE,ROHS, FCC,GS,SAA,C-TICK
Model Number: AT3W250-12
การชำระเงิน:
Minimum Order Quantity: 1
ราคา: negotiation
Packaging Details: Carton box
Delivery Time: 10-15 days
Payment Terms: Ex works
Supply Ability: 1, 000, 000PCS/week
ติดต่อ
รายละเอียดสินค้า
แสงสูง:

led lighting Driver

,

Led Downlight Driver





3W / 5W Low Power Constant Voltage Led Driver 12V EN 61347-1 420mA





Short Features :



> Output type : constant voltage

> input voltage range : 100~240VAC

> output : 12V 250mA 3W / 12V 420mA max 5W

> Ripple and Noise : 100mV maximum

> Effiency : 85% minimum

> PF : >0.95

> IP rate : IP65

> Net Weight : 120g

> Dimension : 40(H)*27(W)*22(H)mm

> Certificate : CE , ROHS , C-tick  , FCC , UL certificates.

> Safety protection : over load, over voltage, short ciruict, open load protection.




Specifications



Input Rated Voltage :

100Vac~240Vac

Input Frequency Range:

47Hz~63Hz

Input Inrush Current :

1.8A max

Efficiency  :

85%(MIN)at Rated Voltage

Output:

12V 250mA 3W / 12V 420mA max

Output power :

3W / 5W

Ripple and Noise :

<150Mv at full road with 20MHz bandwidth

Turn On Delay Time:

<3S  (AC:110V and full load)

Safety protection :

over voltage and current protection.

Leakage Current:

<5mA

Output typer:

Constant voltage

Operating Temperature:

0°C----+60°C

Storage Temperature:

-20°C----+85°C

Certificate:

CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK

Safety Standard :

EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006

Application:

For led light, led strip, led down light etc….



MODEL LIST :



CONSTANT VOLTAGE LED DRIVER

Model

Input Voltage

Output Power

Output Voltage

Output Current

Power Factor

Dimension
(mm)

SW-AT3W250-12

100-240V

3W

12VDC

250mA

0.95

40*28*22

SW-AT5W400-12

5W

12VDC

420mA

SW-AT6U12-41

100-240V

6W

12VDC

500mA

0.95

48*28*22

SW-AT6U24-41

24VDC

240mA

SW-AT9U12-41

100-240V

9W

12VDC

750mA

0.95

48*28*22

SW-AT9U24-41

12VDC

375mA

SW-AT12U12-41

100-240V

12W

12VDC

1.0 A

0.95

48*28*22

SW-AT12U24-41

24VDC

500mA

SW-AT15U12-02

100-240V

15W

12VDC

1.25A

0.95

115*45*28

SW-AT15U24-02

12VDC

630mA

SW-AT18U12-02

100-240V

18W

12VDC

1.0 A

0.95

115*45*28

SW-AT18U24-02

24VDC

500mA

SW-AT21U12-01

100-240V

21W

12VDC

1.75A

0.95

140*45*28

SW-AT21U24-01

12VDC

0.87A

SW-AT24U12-02

100-240V

24W

12VDC

2.0 A

0.95

140*45*28

SW-AT24U24-02

24VDC

1.0 A

SW-AT27U12-02

100-240V

27W

12VDC

2.25A

0.95

140*45*28

SW-AT27U24-02

12VDC

1.12A

SW-AT30U12-02

100-240V

30W

12VDC

2.5 A

0.95

140*45*28

SW-AT30U24-02

24VDC

1.25 A

SW-AT33U12-02

100-240V

33W

12VDC

2.75A

0.95

140*45*28

SW-AT33U24-02

12VDC

1.4A





Applications :





For led light, led strip, led down light etc….




INSTRUCTION :



-For indoor  application

-The mains plug is used as the disconnect device, the disconnect device shall be readily operable.

-The socket-outlet shall be installed near the equipment and shall be easily accessible.

-No naked flame source, such as lighted candles, should be placed on the apparatus.

-Maximum operating ambient for the equipment is 40℃.

-The apparatus should not be used in a confined space such as a bookcase.

-This appliance is not intended for use by persons (including children) with reduced physical,

sensory, or mental capacities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their Safety.

-Children should be supervised to ensure that they do not play with the appliance.
