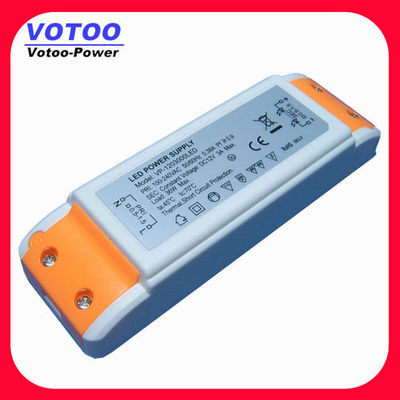

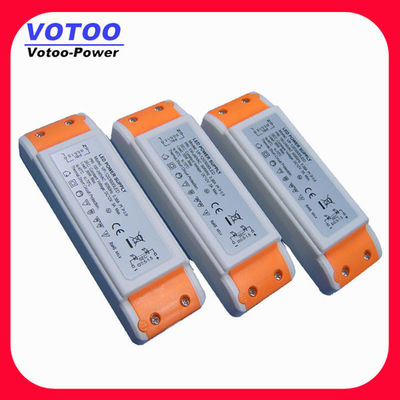

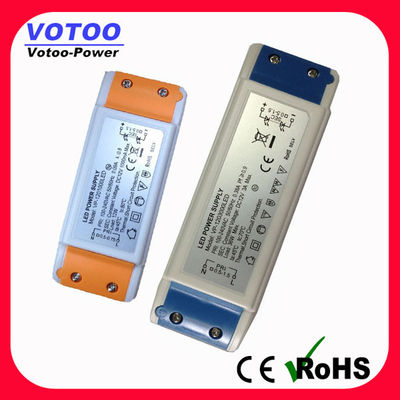

CE AC110-240V Constant Voltage LED Driver 12V 36W For LED Floor Lamp
Quick Detail:
led driver 24v 1.25a
Humidity: 5% to 95% Non-Condensing
Material: ABS+PC
Efficiency:85%Min
100% burn-in before shipping
Constant Voltage design
Certificate: CE & RoHS
Safety :SCP OCP OVP
Warranty: 1 year
Application: Spot light, ceiling light, down light, etc.
Features:
Input Voltage: AC110-240V
Output Voltage: DC12V
Output Current: 3000mA
Output Watt: 36W
Product Dimension: 145.0 x45.0 x 29.0mm
o Small volume, light weight, high efficiency.
o Cooling by free air convection.
o 100% Full load burn-in test.
o One year warranty.
o Ripple & Noise: 1% of Output Voltage
o Leakage Current: 0.25mA
o No load power Consumption
o Working Temperature:0-40°C Max
o Efficiency:85%Min
o High Efficiency
o Short Circuit Protection
o Over Voltage Protection
o Over Current Protection
o Green Circuit Design
o Accurate information and descriptions.
o All orders are shipped on time.
o All items are fully inspected prior to shipping to meet international standards by our QC staffs.
o All items are with CE RoHS approval to ensure the products quality.
o Accurate information and descriptions.
Weight: 140g
o Dimensions: 145.0 x45.0 x 29.0mm
Specification:
Electrical specifications |
Output Voltage |
12V |
Output Current |
3000mA |
|
Rated Output Power |
36W |
|
Input Voltage |
100-240V |
|
Frequency Range |
50~60HZ |
|
Typical Efficiency |
85% Min |
|
Environmental specifications |
Storage temperature |
-40~60°c |
Operating temperature |
-25~40°c |
|
Working environment |
Indoor installations |
|
Features |
Overload Protection |
automatic recovery |
Over Current Protection |
recovers automatically after fault condition is removed |
|
Over Temperature Protection |
recovers automatically after temperature goes down |
|
Short Circuit Protection |
Hiccup mode, recovers automatically after fault condition is removed |
|
Others |
Application |
LED Lighting |
LED Sign Applications |
||
Standard |
CE |
|
RoHS |
||
MTBF |
50,000 HRS min |
How to Install?
Applications:
LED strip light 3528 5050, ceiling light, wall light, panel light, tube light, spotlight, plug-in light, LED tube etc.
