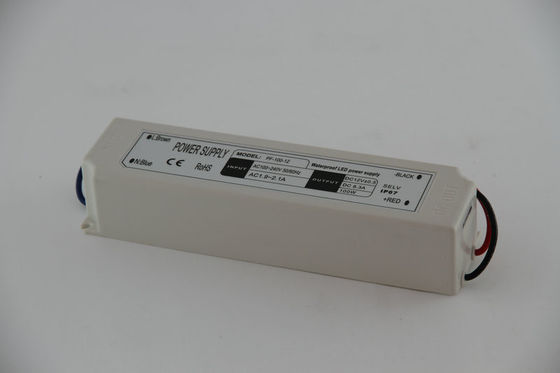

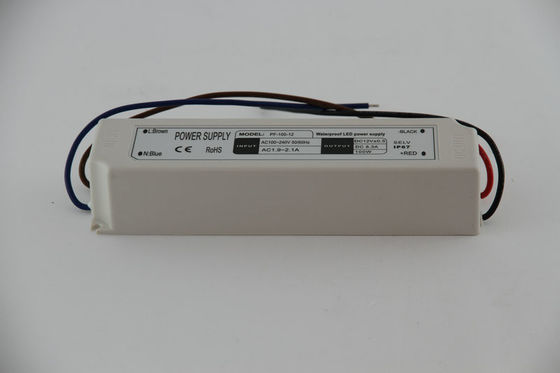

100W 50Hz Constant Voltage 12 Volt LED Driver Efficiency With Overload Protection

รายละเอียดสินค้า:

Place of Origin:	China
ชื่อแบรนด์:	DongDaHua
ได้รับการรับรอง:	CE,RoHS

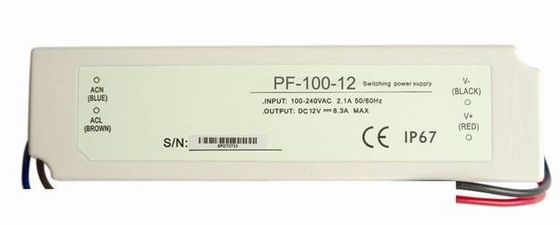

Model Number:	PF-100-12

การชำระเงิน:

Minimum Order Quantity:	10
ราคา:	/
Packaging Details:	as for your requirement
Delivery Time:	as per your order quantity
Payment Terms:	TT,paypal
Supply Ability:	4000pcs/Day

ติดต่อ

รายละเอียดสินค้า

Product Name:	Constant Voltage LED Driver	DC output power:	100W
DC output voltage:	12V 24V	Input voltage range:	110-240V AC
Waterproof grade:	IP67	Input frequency range:	47Hz~63Hz
แสงสูง:	12 volt led driver , waterproof led driver

100W 24V Constant Voltage LED Driver Efficiency Overload Protections

Quick detail:

Power: 100W

Input: AC110-264V

Output: DC 12V 24V

Size: 190*52*38

Certificate: CE&ROHS

Warranty: 2 years

Description:

1. Protections :Short circuit/Overload/Over temperature

2. Cooling by free air convection

3. IP67 design for indoor or outdoor installations

4. 100% full load burn-in test

5. Suitable for LED lighting

6. Products through CE& ROHS certification

7. Two years warranty

Descriptions:

Parameter	Model:PF-100-12
DC output voltage	12V±5%	24V±5%
Rated output current	8.3A	4.15A
Output current range	0-8.3A	0-4.15A
Ripple and noise	120mVp-p
DC output power	100W	100W
Efficiency	85%	85%
Input voltage range	110-240V AC
Short-circuit protection	Damage free short-circuit protection 3 times or more with automatic restoration
Overload protection	105-150% hiccup with automatic restoration
Temp.coefficient	±0.03%℃ ( 0-40℃ )
Voltage tolerance	Input- output range: 1.5KvAC
Working environmental temp.	-10℃~+40℃
Waterproof grade	IP67
Input frequency range	47Hz~63Hz
Storage temperature	-20℃~+85℃
Dimension	1005238 mm
weight	0.58 kg

Features:

1. constant voltage design

2. Universal AC input/Full range

3. Withstand 300VAC surge input for 5 seconds

4. Epoxy encapsulated with IP67 level

5. Protections:Short circuit/Overload/Over voltage

6. Cooling by free air convection

7. Small and compact size

8. Fully isolated plastic case

9. Suitable for LED lighting and moving sign applications

10.100% full load burn-in test

11. Low cost,high reliability

12. 2 years warranty

100W 50Hz Constant Voltage 12 Volt LED Driver Efficiency With Overload Protection

Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
