Place of Origin: | DONGGUAN CHINA |
ชื่อแบรนด์: | SINOWON |
ได้รับการรับรอง: | CE |
Model Number: | VB62.5 |
Minimum Order Quantity: | 1 Set |
---|---|
Packaging Details: | Plywood Box |
Delivery Time: | 10 - 14 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 Sets per Month |
Turret Control: | Motorized Switch | Eyepiece: | 10X Digital Eyepiece |
---|---|---|---|
Max Height of Specimen: | 150mm | Horizontal Space: | 125mm |
Magnification: | 5x/10x | Dwell Time: | Adjustable 1-60s |
Instrument Dimension: | 535 x190 x585mm | Brinell Hardness Range: | (8-650) HBW |
Vickers Hardness Range: | 8HV-2967HV | ||
แสงสูง: | Universal Hardness Testing Machine,Material Hardness Tester |
● Vicky VB62.5 Equips with blue tooth module, realize the wireless data transfer to computer and mini printer.
● Motorized turret, close loop loading system and touch screen/control panel input.
● Brinell and Vickers test methods, just replace indenter to do specific testing.
● Standard delivery comes with 5x and 10x objectives, all of them can do measurement, indenter and objective switches motorized.
● Available to preset dwell time, illumination brightness.
● Innovative design of color touch screen, shows force selection, dwell time, hardness conversion, etc.
● Hardness result can be converted to HK, HBW, HRA, HRC, HV and superficial rockwell scales.
● In order to avoid operation error, optional measurement software MV-200S and MB is a good choice.
Wide application:
mainly used to Test very thin materials like foils, thin pieces,coatings layers,etc;
Measuring hardness of the surface of a part,small parts or small areas;
Measuring individual micro-structures;
Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.
Technical Data:
Name |

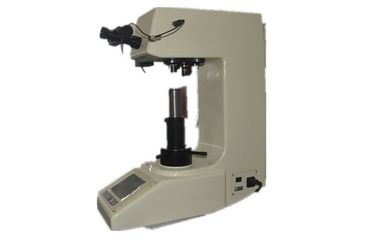

Vickers Brinell Combined Digital Hardness Tester with Automatic Turret and Bluetooth Adapter |
|
Model |
Vicky VB-62.5 |
|
Code # |
821-300 |
|
Brinell Force |
Kgf |
5,6.25,10,15.625,30,31.25,62.5 |
N |
49.0,61.3,98.0,153.2,294.2,306.5,612.9 |
|
Brinell Scales |
HBW5/62.5,HBW2.5/62.5,HBW2.5/31.25,HBW2.5/15.625,HBW2.5/6.25,HBW1/30,HBW1/10,HBW1/5 |
|
Vickers Force |
Kgf |
1,2,2.5,3,5,10,20,30,50 |
N |
9.8,19.6,24.5,29.4,49.0,98.0,196,294,490 |
|
Brinell Hardness Range |
(8-650) HBW |
|
Vickers Hardness Range |
8HV-2967HV |
|
Loading Control |
Automatic (Loading/Dwell/Unloading) |
|
Turret Control |
Motorized Switch |
|
Magnification |
Observation:5x/10x; Measurement:5x/10x |
|
Eyepiece |
Digital Eyepiece 10x |
|
Dwell Time |
Adjustable 1-60s |
|
Hardness Conversion Scales |
HRC,HV,HBS,HBW,HK,HRA,HRD,HR15N,HR30N, HR45N,HS,HRF,HR15T,HR30T,HR45T,HRB |
|
Conversion Standard |
ASTM,DIN |
|
Operation Language |
Chinese, Language, German, Turkish, Korean, etc. |
|
LCD Screen |
5.2" Color touch screen,Resolution:640*480 |
|
Max Height of Specimen |
150mm |
|
Throat |
125mm |
|
Power supply |
AC220V/50HZ;110V/60Hz |
|
Instrument Dimension |
535 x190 x585mm |
|
Packing dimension |
610 x450 x770mm |
|
Gross/Net weight |
47Kg/43Kg |
|
Execute Standard |
GB/T4340, ISO6506/6507,ASTM E10-12/E92 JIS Z2243 |
