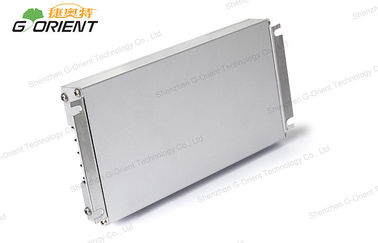

2 Years Warranty 126w LED Switching Power Supply Ultra - thin 18mm CE Approved

2 Years Warranty 126w LED Switching Power Supply Ultra - thin 18mm CE Approved

  • 2 Years Warranty 126w LED Switching Power Supply Ultra - thin 18mm CE Approved
2 Years Warranty 126w LED Switching Power Supply Ultra - thin 18mm CE Approved
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: G-ORIENT
ได้รับการรับรอง: ISO9001 / CE / ROHS / FCC
Model Number: NID150-4.2-A
การชำระเงิน:
Minimum Order Quantity: 10pcs
ราคา: negotiable
Packaging Details: 20pcs/12Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
ติดต่อ
รายละเอียดสินค้า
Application: On-board screen, Taxi LED sign Input: 36-72vdc
Standard: CE / ROHS / FCC Output power: 126W
Output: 4.2V DC / 30A High efficiency: 91%
แสงสูง:

switching regulator power supply

,

switched mode power supply





2 Years Warranty 126w LED Switching Power Supply Ultra-thin 18mm CE Approved





Aplications:

This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use





Features:

* Input reverse connect protection

* High efficiency 91% & small size

* Low output ripple and noise

* Aluminum metal shell,natural cooling

* Through the EMC certification

* 2 years warranty

* CE RoHS FCC approved

* To prevent car screen flower screen, the splash screen and two horizontal line design





Specifications:

Switching power supply

 NID-150-5-A

 OUTPUT

DC Voltage

 5V

Current Range

 0~30A

Rated Current

 30A

Rated Power

 150W

Ripple & Noise(max.)

 <100mVp-p

Voltage set point accuracy

 +/- 3.0%Vo max

Over-current protection

 >120%io,hiccup

Line Regulation

 0.2%Vo max

Load Regulation

 0.2%Vo max

Short-circuit protection

 Hiccup

Hold up time

 >8mS

Overshoot and undershoot

 < +/- 5.0%

 INPUT

Voltage Range

 DC36-72V

Frequency Range

 BW=20MHz

Efficiency(Typ.)

 91%

DC Current

 <2.9A

Inrush Current(Typ.)

 100A at DC Cold start

Leakage Current

 Input-Output< 0.2mA ; Input-PG:<0.3mA

 Environment

MIBF

 >2 million hrs

Temp.Coefficient

 < 0.02%/℃

Storage Temperature range

 -55 ~ +115℃

Operaing board Temperature range

 -30 ~ +75℃

 Safety

Safety standards

 CE

Withstand Voltage

 DC40V

 Others

Dimension

 152*80*18mm (L*W*H)

Packing

 0.6kg; 20pcs/12Kgs







Company Advantage:

* Professional R&D team

* Short lead time

* Standardized production process

* High quality products





Competitive Advantage:

* CE / ROHS / FCC approval

* High efficiency up to 94%

* Low output ripple and noise
