2 Years Warranty Ultra thin LED Switching Power Supply 4.2V 20A 84W

รายละเอียดสินค้า:

Place of Origin:	China
ชื่อแบรนด์:	G-ORIENT
ได้รับการรับรอง:	ISO9001 / CE / ROHS / FCC
Model Number:	NHD100-4.2-A

การชำระเงิน:

Minimum Order Quantity:	10pcs
ราคา:	negotiable
Packaging Details:	20pcs/12Kgs / CARTONS
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T, Paypal, L/C, Western Union
Supply Ability:	50,000pcs per month

ติดต่อ

รายละเอียดสินค้า

Application:	On-board screen, Taxi LED sign	Input:	9-36V DC
Operating temperature:	-40℃ ~ +60℃	Standard:	CE / ROHS / FCC
Output power:	100W	Output:	5V DC / 20A
High efficiency:	94%	Size:	1208018mm
แสงสูง:	adjustable switching power supply , switched mode power supply

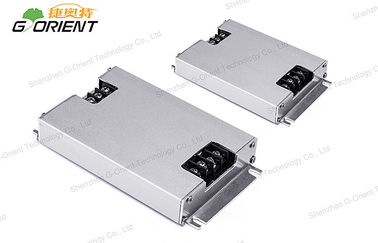

2 Years Warranty Ultra thin LED Switching Power Supply 4.2V 20A 84W

Competitive Advantage:
* CE / ROHS / FCC approval
* Low output ripple and noise
* Ultra-thin 18mm
* The two level output over voltage protection
* Output over-current,short-circuit,over-load,over-voltage protection
* High efficiency up to 94%

Applications:
This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.

Specifications:

Switching power supply		NHD100-4.2-A
OUTPUT	DC Voltage	4.2V
	Current Range	0~20A
	Rated Current	20A
	Rated Power	84W
	Ripple & Noise(max.)	<100mVp-p
	Voltage set point accuracy	+/- 3.0%Vo max
	Over-current protection	>120%io,hiccup
	Line Regulation	0.2%Vo max
	Load Regulation	0.2%Vo max
	Short-circuit protection	Hiccup
	Hold up time	>8mS
	Overshoot and undershoot	< +/- 5.0%
INPUT	Voltage Range	DC9-36V
	Frequency Range	BW=20MHz
	Efficiency(Typ.)	94%
	DC Current	<25A
	Inrush Current(Typ.)	100A at DC Cold start
	Leakage Current	Input-Output< 0.2mA ; Input-PG:<0.3mA
Environment	MIBF	>2 million hrs
	Temp.Coefficient	< 0.02%/℃
	Storage Temperature range	-55 ~ +115℃
	Operaing board Temperature range	-25 ~ +65℃
Safety	Safety standards	CE
Safety	Withstand Voltage	DC20V
Others	Dimension	1208018mm (LWH)
Others	Packing	0.6kg; 20pcs/12Kgs

Features:
* Low output ripple and noise
* High efficiency 94% & small size
* 2 years warranty
* To prevent car screen flower screen, the splash screen and two horizontal line design
* Through the EMC certification
* Input reverse connect protection
* Aluminum metal shell,natural cooling

Company Advantage:
1. OEM&ODM,any your customized lightings we can help you to design and put into product
2. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area,ideas of design and all your private information
5. Your inquiry related to our products or price will be replied in 24hrs
.
