Gaoxin Industrial Park, Guangming ใหม่เขตเมืองเซินเจิ้มณฑลกวางตุ้งประเทศจีน | Angelwang66@126.com |
Place of Origin: | China |
ชื่อแบรนด์: | G-ORIENT |
ได้รับการรับรอง: | ISO9001 / CE / ROHS / FCC |
Model Number: | NHD100-5-A |
Minimum Order Quantity: | 10pcs |
---|---|
ราคา: | negotiable |
Packaging Details: | 20pcs/12Kgs / CARTONS |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T, Paypal, L/C, Western Union |
Supply Ability: | 50,000pcs per month |
Output power: | 100W | Input: | 9-36V DC |
---|---|---|---|
Output: | 5V DC / 20A | Operating temperature: | -40℃ ~ +60℃ |
Size: | 120*80*18mm | High efficiency: | 94% |
Warranty: | 2 Years | Application: | On-board screen, Taxi LED sign |
แสงสูง: | switching regulator power supply,switched mode power supply |

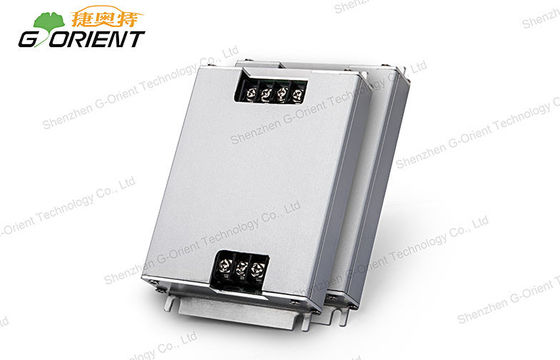

Aluminium Case Variable Switching Power Supply 100W with Thickness 18mm
Applications:
This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.
Competitive Advantage:
* CE / ROHS / FCC approval
* Output over-current,short-circuit,over-load,over-voltage protection
* Ultra-thin 18mm
* The two level output over voltage protection
* High efficiency up to 94%
* Low output ripple and noise
Specifications:
Switching power supply |
NHD100-5-A |
|
OUTPUT |
DC Voltage |
5V |
Current Range |
0~20A |
|
Rated Current |
20A |
|
Rated Power |
100W |
|
Ripple & Noise(max.) |
<100mVp-p |
|
Voltage set point accuracy |
+/- 3.0%Vo max |
|
Over-current protection |
>120%io,hiccup |
|
Line Regulation |
0.2%Vo max |
|
Load Regulation |
0.2%Vo max |
|
Short-circuit protection |
Hiccup |
|
Hold up time |
>8mS |
|
Overshoot and undershoot |
< +/- 5.0% |
|
INPUT |
Voltage Range |
DC9-36V |
Frequency Range |
BW=20MHz |
|
Efficiency(Typ.) |
94% |
|
DC Current |
<2.9A |
|
Inrush Current(Typ.) |
100A at DC Cold start |
|
Leakage Current |
Input-Output< 0.2mA ; Input-PG:<0.3mA |
|
Environment |
MIBF |
>2 million hrs |
Temp.Coefficient |
< 0.02%/℃ |
|
Storage Temperature range |
-55 ~ +115℃ |
|
Operaing board Temperature range |
-30 ~ +75℃ |
|
Safety |
Safety standards |
CE |
Withstand Voltage |
DC40V |
Features:
* Input reverse connect protection
* High efficiency 94% & small size
* To prevent car screen flower screen, the splash screen and two horizontal line design
* Low output ripple and noise
* 2 years warranty
* Aluminum metal shell,natural cooling
* Through the EMC certification
Company Advantage:
1. Protection of your sales area,ideas of design and all your private information
2. Your inquiry related to our products or price will be replied in 24hrs
3. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
4. OEM&ODM,any your customized lightings we can help you to design and put into product
5. Distributorship are offered for your unique design and some our current models
