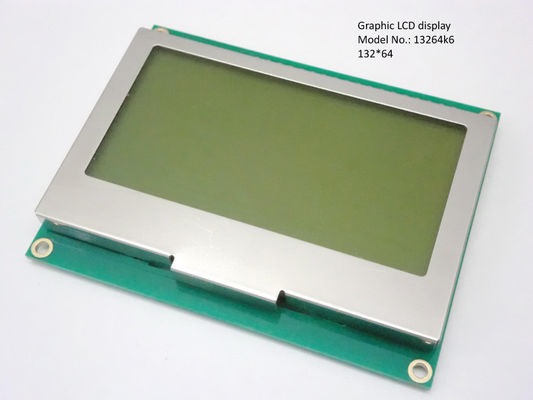

Name: Monochrome COB Graphic LCD Display module 132 * 64 for medical , military , electronics
Brand: LEEHON
SKU: 13264K6
Price: 5.8 USD
Availability: InStock
Rating: 5 (184 reviews)

บ้าน ผลิตภัณฑ์พาวเวอร์ซัพพลายทหาร

Monochrome COB Graphic LCD Display module 132 * 64 for medical , military , electronics

รายละเอียดสินค้า:

Place of Origin:	China
ชื่อแบรนด์:	LEEHON
ได้รับการรับรอง:	RoHS
Model Number:	13264K6

การชำระเงิน:

Minimum Order Quantity:	200
ราคา:	us$5.8-6.0/pc
Packaging Details:	exporting standard package
Delivery Time:	1-2 weeks
Payment Terms:	T/T, Western Union,paypal
Supply Ability:	500k/M

ติดต่อ

รายละเอียดสินค้า

Dispaly mode:	Graphic lcd display	DOTS:	132*64
Controller IC::	ST7565	Drive Method::	1/64 Duty; 1/9 Bias
Active Area::	58.04*30.68mm	interface:	Serial/parallel port
Polarizer Type::	Transflective, positive	operating temperature:	–20ºC TO +70ºC
backlight color:	yellow
แสงสูง:	alphanumeric lcd display , graphic lcd module

STN transflective Graphic LCD Display 132*64 yellow backlight

Application:

widely used in medical, military, electric power, industrial control, aerospace, electronics, instrumentation, numerical control machine tools, automotive, communications and other fields

Specification:

product name.:	graphic lcd display
Model NO.:	13264K6
Resolution	132*64
LCD Outline Size:	78.060.010.2 mm
View Area:	66.5*33.5 mm
Active Area:	58.04*30.68 mm
Display Type:	STN, yellow
Polarizer Type:	Transflective,positive
View Direction:	6:0 O'Clock
VDD	+3.3V
Drive Method:	1/64 Duty; 1/9 Bias
Controller IC:	ST7565
interface:	Serial/parallel port
Backlight type:	yellow
Backlight Supply Voltage:	+3.3V
Operating Temp:	–20ºC TO +70ºC
Storage Temp:	–30ºC TO +80ºC

Welcome to customize product!

we have a professional R&D team working for you !

Our factory is founded in Year 2009, located in Nanjin China. Our thousands of products cover LCD / LCM/ COG including 122*32,128*64,128*128,160*160,192*64,240*128,320*240 etc

13264K6 Drawing as below:
