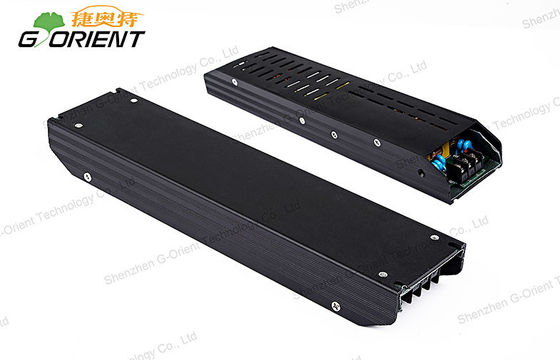

Wide Range Input 100 - 240V AC DC Converter 252 Watt for LED display

รายละเอียดสินค้า:

Place of Origin:	China
ชื่อแบรนด์:	G-ORIENT
ได้รับการรับรอง:	ISO9001 / CE / ROHS / FCC
Model Number:	NHP300-4.2-A

การชำระเงิน:

Minimum Order Quantity:	10pcs
ราคา:	negotiable
Packaging Details:	20pcs/16Kgs / CARTONS
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T, Paypal, L/C, Western Union
Supply Ability:	50,000pcs per month

ติดต่อ

รายละเอียดสินค้า

Input:	100-240V AC	Product Name:	AC DC Converter
Operating temperature:	-40℃ ~ +60℃	Output power:	252W
Output:	4.2V DC / 60A	IP Grade:	IP20
Power factor:	>0.95	High efficiency:	90%
แสงสูง:	ac to dc power converter , ac to dc converter

Wide Range Input 100 - 240V AC DC Converter 252 Watt for LED display

Features:
* High efficiency up to 90%
* Ultra-low start up temperature -40℃
* 2 years warranty
* Low output ripple and noise,high reliability
* With over-current/over-voltage/short-circuit/over-power protection
* Synchronous rectification,high power factor>0.95

Specifications:

Switching power supply		NHP300-4.2-A
OUTPUT	DC Voltage	4.2V
	Current Range	0~60A
	Rated Current	60A
	Rated Power	252W
	Ripple & Noise(max.)	<200mVp-p
	Regulation	≦+/-3%
	Leakage current	≦3.5mA
INPUT	Voltage Range	100-240V AC
	Frequency Range	47-63Hz
	Efficiency(Typ.)	90%
Environment	Storage Temperature	-40 ~ +85℃
	Operaing Temperature	-40 ~ +80℃
	Relative Humidity	10%-95%
	Cooling	Natural convection
Safety	Safety standards	CE
Withstand Voltage	Input-output withstand vol.	3000Vac/10mA/1min
	Input-FG withstand vol.	1500Vac/10mA/1min
	Output-FG withstand vol.	500Vac/10mA/1min
Others	Dimension	2425829mm (LWH)
Others	Packing

Competitive Advantage:
* Ultra-low start up temperature-40℃
* Ultra-thin 29mm
* Output over-current,short-circuit,over-load,over-voltage protection
* High efficiency up to 90%
* Low output ripple and noise
* Synchronous rectification+PFC

Applications:
* LED display,LCD TV, LED TV
* Display screen,LED video wall
* Electrical equipment, Instrumentation;
* Communications and security products.
* Digital and electronic products;
* Advisement player

Company Advantage:
* Professional R&D team
* Standardized production process
* Best after sale service
* High quality products
* Short lead time
