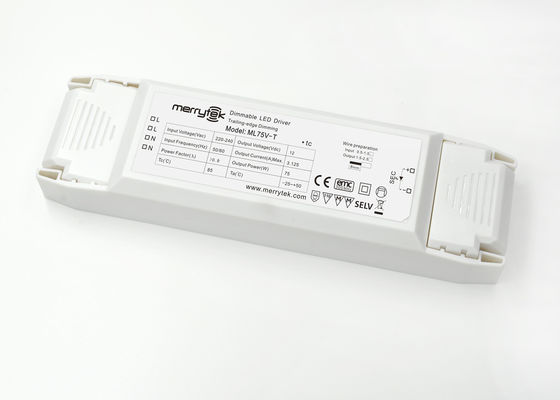

High Power 12V Constant Voltage Dimmable LED Driver 75W Without Flickering

รายละเอียดสินค้า:

การชำระเงิน:

Minimum Order Quantity:	100pcs
ราคา:	Negotiation
Packaging Details:	Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time:	1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Supply Ability:	10,000pcs per month

ติดต่อ

รายละเอียดสินค้า

Output current:	6.25A max	Product Name:	75W/12Vdc traic dimmable led driver
Input Voltage:	220-240Vac	Output voltage:	12Vdc
Dimming Mode:	RC Traic	Output load:	75W max
Working Temperature:	-25℃-50℃	Isolation Class:	Class II, SELV
Approvals:	CE	Protection Class:	IP20
แสงสูง:	24v constant voltage led driver , 75w led driver

75W 12Vdc Constant VoltageTraic Dimmbale Led Driver with RC Dimming for LED Strip

Description:

1, Constant voltage 12Vdc

2.The output load is 75W max

3. The triac dimmable led driber mainly works for led strip

4. The trailing -edge dimming , cpmpatible with popular dimmer in Euro.

5. Compatible with dimmer: Scandinavia market- Schneider SBD615RC; Deutsch market- JUNG 225 T; DEBERKE 2874; BUSCH 6513 U-102; GIRA 0307 00

6. Protection: Short circuit / Over voltage / Over temperature.

7. Dimming range: 10%-100%

8. without flickering

Specifications

Input	Input voltage	220-240Vac, 50/60Hz
	Power factor (PF)	≥0.9(@ 240Vac input, full load and without dimmer)
	Efficiency	≥82%(@ 240Vac input, full load and without dimmer)
	No-load power	≤1.5W
Output	Output Voltage	12V DC
	Output Current	6.25A max.
	Voltage accuracy	±5%
	Rated power	75W Max.
Dimming	Dimming mode	Trailing edge dimming
Dimming	Dimming range	10%-100%
Environment	Working temperature	-25℃~50℃
Environment	Storage temperature	-40℃~80℃
Safety and EMC	Insulation class	Class II, SELV
	Withstand voltage	Input-Output: 3.7kVac/5mA/1min
	EMC	Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547
	Safety	Compliance to EN61347-1, EN61347-2-13
Protection	Short circuit	Protection mode: Auto recovery
Protection	Over temperature	Protection mode: Auto recovery
Others	Dimension	220x58x40mm
	Enclosure	Plastic, white
	IP rating	IP20
	Connection	Input: 4-hole press-in type terminal(L, L, N, N) Output: Screw terminal block (LED +, LED -)
	Life time	30,000h
	Certification	CE
