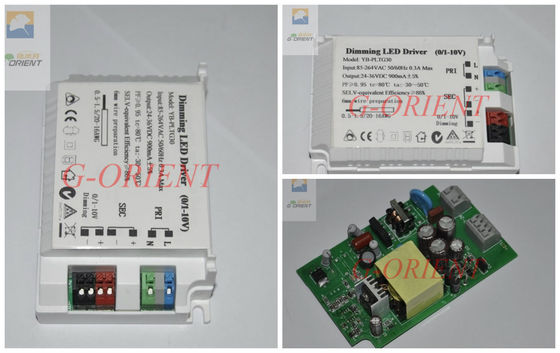

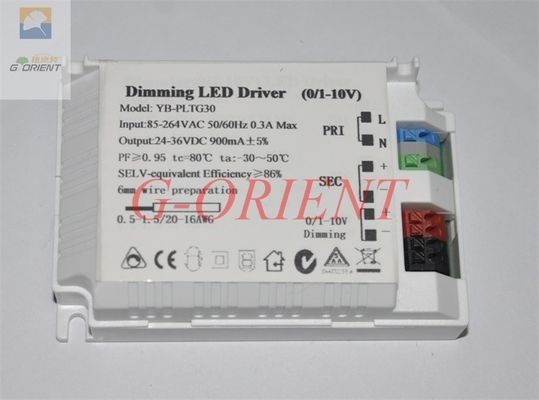

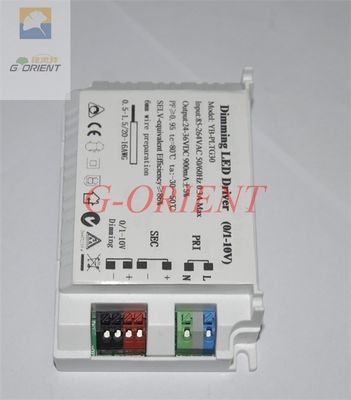

Universal 600ma 0-10V PWM Dimmable constant current led driver power supply

รายละเอียดสินค้า:

การชำระเงิน:

Minimum Order Quantity:	100pcs
ราคา:	Negotiable
Packaging Details:	96pcs/CTN, GW:6KGS, Carton Size: 48x28x25 cm
Delivery Time:	3-15 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	200,000PCS/Mon

ติดต่อ

รายละเอียดสินค้า

Input Voltage:	AC85-265V	Output Voltage:	24-42V
Output Current:	500-600mA	Power:	18-24W
Efficiency:	85	Warranty:	3 years
Operation Tempature:	-25 ~ +55℃
แสงสูง:	triac dimmable led driver , constant current led driver

Universal 600ma 0-10V PWM Dimmable constant current led driver power supply

Features:

* 100% full load burn-in test

* Input Voltage: AC 85-264V

* Multiple Protections: Short circuit / Over load / Over voltage / Over temperature, Auto recovery

* Soft start with low ripple

* Leading or trailing edge dimming and universal dimming, 0/1-10V interface to be compatible with large-scale dimming system

* Output: Constant current

* Fit for class I protection lighting fixture

* Compliant with international standards, like safety, EMI, anti-interference, etc.,

* Compatible for most dimmers in the market, like Lutron, Philips, Sanken, etc.,

Applications:

* LED Panel, Down Light, Ceiling Light, Flood Light, etc.,

* Suitable for commecial and residential LED lamps

Specifications:

18-24W External constant current 0-10V LED dimmable Power Supply
OUTPUT	Voltage	24-42VDC
	Current Range	500-600ma
	Current Accuracy	5%
	Rated Power Range	18-24W
	Efficiency(Full Loaded)	≥0.85
	Current Ripple	≤520mAp-p
INPUT	Voltage Range	100-120/200-240VAC
	Frequency Range	47-62Hz
	Power Factor	≥0.95
	Inrush Current	10A MAX(230VAC)
	Leakage Current	≤0.5mA
Protection	Over load/Over Voltage/Over Temperature/Short Circuit Protection	150% Rated output power, OTP≥120±5℃,
Environment	Working Temp.	-25 ~ +55℃
	Working Humidity	20 ~ 90% RH, non-condensing
	Storage Temp., Humidity	-40 ~ +50℃, 5 ~ 95% RH
	Temp. Coefficient	+/-0.03%/℃ (0 ~ 50℃)
Feature	Dimension	1036731 (LWH)
Feature	Weight	39g
Others	Voltage Resistance	IP-OP: 3Kvac/5Ma/1 min
Others	Conformance with Regulation	EN55015, EN610003-2Classic, EN610003-3
