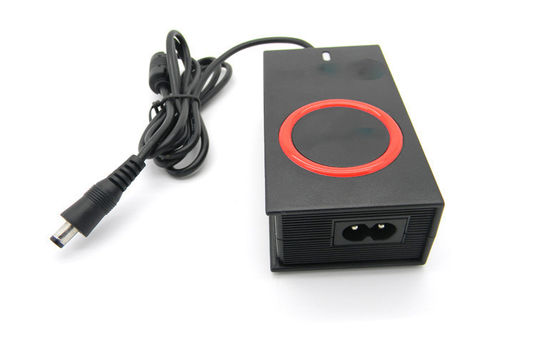

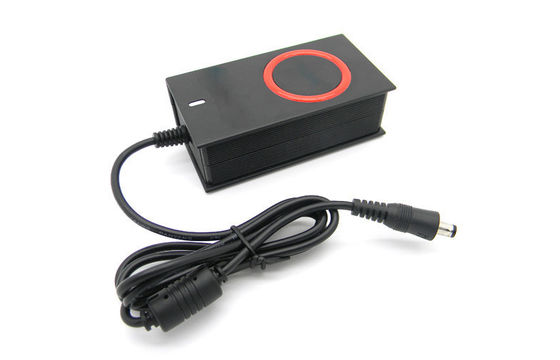

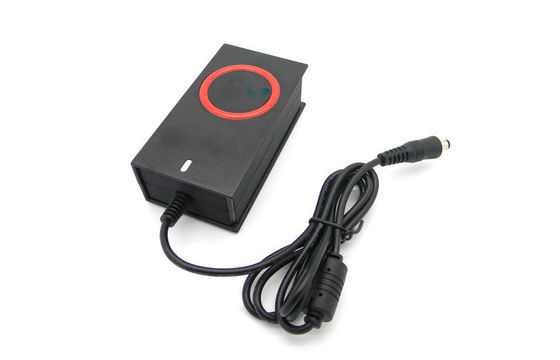

40W AC To DC Power Adapter Manual Book-shaped 1.2M For Acer / Asus

รายละเอียดสินค้า:

Place of Origin:	Shenzhen,China
ชื่อแบรนด์:	RAYTOP
ได้รับการรับรอง:	CE, RoHS, FCC
Model Number:	RT-ULA-040W-01S

การชำระเงิน:

Minimum Order Quantity:	1 pcs
ราคา:	Negotiable
Packaging Details:	Gift box or blister package,20 pcs per carton, customer package available.
Delivery Time:	15-20 working days.
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	30000 Pcs monthly.

ติดต่อ

รายละเอียดสินค้า

Input Volt:	AC100-240V, 50/60Hz, 1.5A	Output Volt:	9.5-20VDC
Power:	40W	Voltage Selection Manner:	Mannual
AC Cable:	1.2M, 2x0.75mm2	DC Cable:	1.2M, 20AWG
AC Plug:	EU,US, UK, AU	Product Name:	AC/DC Power Adapter
Protection:	SCP, OVP, ODP	Application:	Acer,Asus,Gateway,Lenovo,HP,Delta,Sony,Toshiba
Approval:	CE, RoHS, FCC
แสงสูง:	Switching mode power adapter , ac to dc power supply

40W AC To DC Power Adapter Manual Book-shaped 1.2M For Acer / Asus

Quick Detail:

Universal laptop adapter 40W, manual output voltage9.5-20V, for Mini Notebook and Netbook.

Specs:

Input: AC100-240V, 1.2A max.

Output: DC9.5/12/16/18/20V, 2.0A

Power Cord:

AC Cable: 2x0.75mm2, flat, length: 1.2M

DC Cable: 20AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC

Features:

- High efficiency, up to 85%;

- Protection: Short circuit protection, over voltage protection, over current protection.

- MTBF: 50,000 hours.

Approval: CE, RoHS, FCC

Warranty: 2 years

Contents: 1 Adapter + 1AC Cable+1DC Cable +7 Connectors

Description:

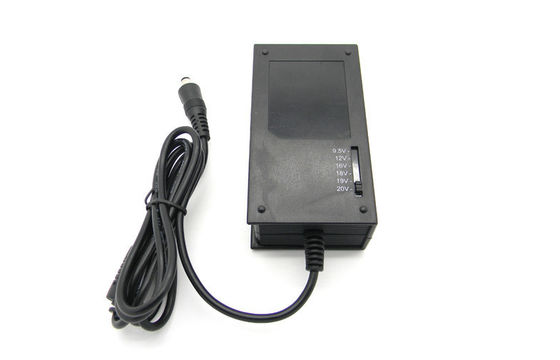

This is an universal laptop AC adapter come with unique design and 7 exchangeable tips, have great compatibility with most top brand notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Gateway, Lenovo etc. The users can adjust the slider on the back of the adapter to get 6 different output voltage 9.5/12/16/18/19/20V. The adapter has compact design and high efficiency, very easy to carry and can charge your laptops quickly on going.

Note: please select correct output voltage before connecting the adapter with your laptops.

Applications:

used for most top brand notebooks and netbooks as external power supply, easy to charge your laptops during travel and at home.

Specifications:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	1.2A
	Inrush Current	30A
Output	Rated Output Voltage	DC 9.5~20V
	Output Voltage	DC9.5/12/16/18/19/20V
	Rated Output Current	2.0A
	Rated Power	Max.40W
	Ripple and Noise	120mV p-p
	Standby Power Consumption	0.5W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automaically recover after short circuit removed.
Reliability	Hi-pot	3000Vac
	Insulation Resistance	Input to output at 500Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 12 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC, UL, SAA
Warranty	2 Years
