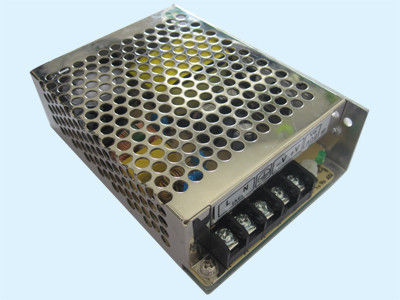

Waterproof Industrial Power Supply 12 Volt For Communication Equipments 50Hz / 60Hz
. Universal AC Input
. No Load Consumption < 0.3W
. Protections: Overload, Short Circuit
. Approved by CE
. 2 Years Warranty
Description :
12V6.25A 75W Industrial Power Supply For Communication Equipments
Electronics Specification : |
|
Input Voltage Range: |
90~264Vac |
AC current: |
2.5A |
Frequency: |
50 / 60Hz |
Inrush Current: |
30A / 230Vac |
Leakage Current: |
<0.3 mA / 240Vac |
Output Voltage: |
12.0Vdc |
Output Voltage Range: |
10.80Vdc to 13.20Vdc |
Output Current: |
6.25A |
Output power: |
75.0W (Max) |
Voltage tolerance: |
±5% |
Line regulation: |
±1% |
Load regulation: |
±5% |
Set up time, Rise time, Hold-up time: |
50ms,50ms,20ms |
Ripple and Noise Test Condition : |
<100 mVp-p |
Efficiency: |
>84% |
Over current protection: |
Over Current limit ≤2.0A (Max) in CC Mode |
Output Short Circuit Protection: |
Can be Shorted without damage and auto recovery |
Environment |
|
Working Temp.: |
0~40℃ |
Working Humidity: |
20%~90% RH non-condensing |
Storage Temp. & Humidity: |
-20℃~85℃, 10%~95% RH |
Reliability |
|
Hi-Pot Testing Voltage : |
I/P-O/P: 3KVAC, I/P-FG:1.5KVAC;O/P-FG:0.5KVAC 1min |
Isolation resistance: |
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms |
Safety Standard : |
EN60950 |
EMI Standard : |
EN55022B |
Safety Approval: |
|
Certificate |
CE |
Mechanical Characteristics |
|
Size: |
(L)110*(W)78*(H)35mm |
Terminal Pin assignment:
Pin 1: ACL
Pin 2: ACN
Pin 3: GND
Pin 4: Output -V
Pin 5: Output +V
Remark:
. All parameters are specified at 220Vac input, rated load,25℃ 70% RH ambient;
. Tolerance: includes set up tolerance, line regulation, load regulation,
. Ripple & Noise are measured at 20MHz of bandwidth by using a 30cm twisted-pair wire terminated with a 0.1uf & 47uf parallel capacitor;
. Line regulation is measured from low line to high line at rated load;
. Load regulation is measured from 20%~100% at rated load.
Applications:
widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
