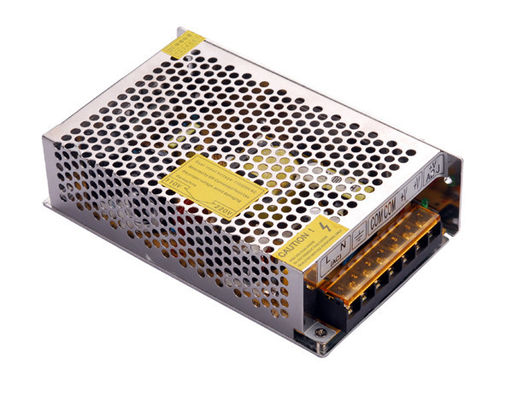

Electric 12V 10A CCTV Camera Power Supplies , EN55022 / GB3954 Switching Power Supply

Electric 12V 10A CCTV Camera Power Supplies , EN55022 / GB3954 Switching Power Supply

  • Electric 12V 10A CCTV Camera Power Supplies , EN55022 / GB3954 Switching Power Supply
Electric 12V 10A CCTV Camera Power Supplies , EN55022 / GB3954 Switching Power Supply
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: WT
ได้รับการรับรอง: CE
Model Number: WT12010000
การชำระเงิน:
Minimum Order Quantity: 500 pcs
ราคา: negotiation
Packaging Details: PE bag+ white box
Delivery Time: 15 Days
Payment Terms: T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply Ability: 4000 PCS/Day
ติดต่อ
รายละเอียดสินค้า
แสงสูง:

CCTV camera power Supplies

,

Worldwide power supply



12V 10A CCTV Power Supplies for Digital and Electronic Products / CCTV Supervisory System



Quick Details:

  • Input voltage: 100 to 240V AC, 50/60Hz
  • Output voltage: 12V 10A
  • Power: 120W
  • Application: Digital and Electronic Products / CCTV Supervisory System



Protections:

  • Overloading protection: 115 to 150% of rated power, when it happened, the power shuts down automatically, when trouble removed the power recovers itself
  • Over-voltage protection: 130 to 150% of rated voltage
  • Over-current protetion



Insulation intensity:

  • Input/output: 1,500V/5mA, 60 seconds
  • Input/ground: 1,500V/5mA, 60 seconds
  • Output/ground: 500V/5mA, 60 seconds
  • Input/output: 1,500V/5mA, 60 seconds
  • Input/ground: 1,500V/5mA, 60 seconds
  • Output/ground: 1,500V/5mA, 60 seconds



Environment requirement:

  • Operating temperature: 0 to 40°C
  • Operating humidity range: 10 to 90% RH (no freezing dew)
  • Storage temperatures: -20 to 85°C
  • Storage humidity range: 10 to 95% RH (no freezing dew)
  • Elevation: ≤3,000m
  • Weight: 300g
  • EMC: EN55022 and GB3954



Warranty:

1 year

Certification:

CE

Usage:

Digital and Electronic Products / CCTV Supervisory System

Packaging:

PE bag+ white box  20 pcs/carton

Place of Origin:

China(Mainland)

Brand Name:

WT

MOQ:

500 pcs

Delivery Time:

15 Days

Payment Terms:

T/T(30% in advance, 70% the balance must be paid before the delivery)

Supply Ability:

4000 PCS/Day





Our Advantages:

  • Professional&experienced engineers
  • Good quality
  • Competitive price
  • Intime service
  • Free samples available
  • About 10 years experiences
  • OEM/ODM services are highly welcome
  • Flexible to meet dynamic requirements
  • High technology
  • Short Lead time
  • AC input power suitable for the world
  • Soft-start current can reduce the AC input impact efficiency
  • With short-circuit and overload protection
  • Compact size ,light weight
  • 100%full-load burning test
  • Installed with EMI filter ,minimum wave
  • Fashionable design
  • Small size
  • Low-ripple and noise
  • High-efficiency



Some Using Details:

  • Do not install power supply in locations with high humidity, dust or strong direct sunlight.
  • Connect power supply to the supplied unit.
  • Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
  • Power supply can only be installed indoors.
  • The power supply should be installed in a location with good airflow.



Electric 12V 10A CCTV Camera Power Supplies , EN55022 / GB3954 Switching Power Supply 0

Electric 12V 10A CCTV Camera Power Supplies , EN55022 / GB3954 Switching Power Supply 1
