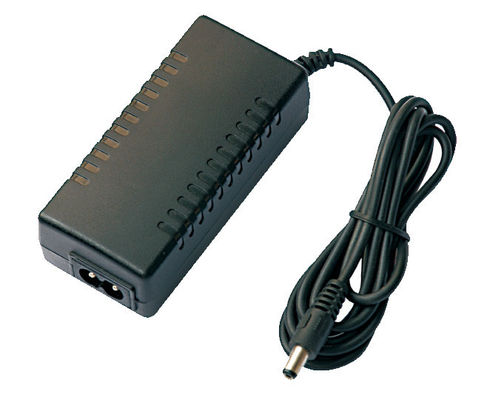

IEC60950-1 UL FCC GS CE SAA C-TICK Desktop Power Adapter DC 18V 1A 18W

IEC60950-1 UL FCC GS CE SAA C-TICK Desktop Power Adapter DC 18V 1A 18W

  • IEC60950-1 UL FCC GS CE SAA C-TICK Desktop Power Adapter DC 18V 1A 18W
IEC60950-1 UL FCC GS CE SAA C-TICK Desktop Power Adapter DC 18V 1A 18W
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: STARWELL
ได้รับการรับรอง: UL,CE,ROHS, FCC,GS,SAA,C-TICK
Model Number: SW-00120500-S10
การชำระเงิน:
Minimum Order Quantity: 100pcs
ราคา: negotiation
Packaging Details: Carton box
Delivery Time: 10-15 days
Payment Terms: Ex works
Supply Ability: 1, 000, 000PCS/week
ติดต่อ
รายละเอียดสินค้า
แสงสูง:

Desktop External Power Supply

,

Desktop Switching Power Supply





IEC60950-1 UL FCC GS CE SAA C-TICK Desktop Power Adapter DC 18V 1A 18W





Feature:





> input voltage range: 100~240VAC

> output: 18V 1.0A

> Effiency: 85% minimum

> Ripple and Noise: 80mV maximum

> Color: Black or white

> Dc cable length: 1.5 meters

> DC jack: 5.5*2.1*10mm

> Net Weight: 250g

> Dimension:110(H)*51.5(W)*33.5(H)mm

> AC inlet:  C8, C6, C14 optional

> Safety protection: over load, over voltage, short ciruict, open load protection.







Specifications







Input Rated Voltage :

100Vac~240Vac

Input Frequency Range:

47Hz~63Hz

Input Inrush Current :

0.8A max

Efficiency  :

85%(MIN)at Rated Voltage

Output:

18V 1.0A

Output power :

18W

Ripple and Noise :

<150Mv at full road with 20MHz bandwidth

Turn On Delay Time:

<3S  (AC:110V and full load)

Safety protection :

over voltage and current protection.

Leakage Current:

<5mA

USB connector:

5.5*2.1*10mm

Operating Temperature:

0°C----+60°C

Storage Temperature:

-20°C----+85°C

Certificate:

CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK

Safety Standard :

EN60950-1 UL60950-1  ESD (EN61000 3-3)
CAS (60950 ITE/TE)  FCC Part 15 subpart B Class B
AN/NZS CISPR 22:2006





MODEL LIST:



12~18W DESKTOP SERIES
Model Input Voltage Power Output Voltage Output Current AC Inlet Type
SW-00090100-S10 100-240V AC 9W 9V 1A C8
SW-00090150-S10 100-240V AC 24W 9V 1.5A C8
SW-00090200-S10 100-240V AC 24W 9V 2A C8
SW-00120100-S10 100-240V AC 27W 12V 1A C8
SW-00120150-S10 100-240V AC 30W 12V 1.5A C8
SW-00XXXYYY-S10 SW-00XXXYYY-S10 ( XXX=090-240 means output voltage is 9-
24V, YYY=001-600, means the output current is 0.01A-6A) .

UL number: E352029



24W~36W DESKTOP SERIES
Model Input Voltage Power Output Voltage Output Current AC Inlet Type
SW-00240200-S10 100-240V AC 24W 12V 2A C8,C6,C14
SW-00150160-S10 100-240V AC 24W 15V 1.6A C8,C6,C14
SW-00240100-S10 100-240V AC 24W 24V 1A C8,C6,C14
SW-00090300-S10 100-240V AC 27W 9V 3A C8,C6,C14
SW-00240125-S10 100-240V AC 30W 24V 1.25A C8,C6,C14
SW-00300100-S10 100-240V AC 30W 30V 1A C8,C6,C14
SW-00XXXYYY-S10 SW-00XXXYYY-S10 ( XXX=090-240 means output voltage is 9-
24V, YYY=001-600, means the output current is 0.01A-6A) .
UL number: E352029









36W~65W SERIES

Model

Input Voltage

Power

Output Voltage

Output Current

AC Inlet

SW-00090400-S10

100-240V AC

36W

9V

4A

C8,C6,C14

SW-00090500-S10

100-240V AC

45W

9V

5A

C8,C6,C14

SW-00090600-S10

100-240V AC

54W

9V

6A

C8,C6,C14

SW-00120300-S10

100-240V AC

36W

12V

3A

C8,C6,C14

SW-00120400-S10

100-240V AC

48W

12V

4A

C8,C6,C14

SW-00120500-S10

100-240V AC

60W

12V

5A

C8,C6,C14

SW-00150300-S10

100-240V AC

45W

15V

3A

C8,C6,C14

SW-00150400-S10

100-240V AC

60W

15V

4A

C8,C6,C14

SW-00190200-S10

100-240V AC

38W

19V

2A

C8,C6,C14

SW-00190300-S10

100-240V AC

48W

19V

3A

C8,C6,C14

SW-00190316-S10

100-240V AC

60W

19V

3.16A

C8,C6,C14

SW-00190342-S10

100-240V AC

65W

19V

3.42A

C8,C6,C14

SW-00240200-S10

100-240V AC

48W

24V

2A

C8,C6,C14

SW-00240250-S10

100-240V AC

60W

24V

2.5A

C8,C6,C14

SW-00XXXYYY-S10

SW-00XXXYYY-S10 ( XXX=090-240 means the output voltage is 9-

24V, YYY=001-600, means the output current is 0.01A-6A) .

UL number: E352029



72W~96W SERIES
Model Input Voltage Power Output Voltage Output Current AC Inlet
SW-00120600-S10 100-240V AC 72W 12V 6A C8,C6,C14
SW-00120700-S10 100-240V AC 84W 12V 7A C8,C6,C14
SW-00240300-S10 100-240V AC 72W 24V 3A C8,C6,C14
SW-00240400-S10 100-240V AC 96W 24V 4A C8,C6,C14
SW-00XXXYYY-S10 SW-00XXXYYY-S10 ( XXX=090-240 meansoutput voltage is 9-
24V, YYY=001-600, means the output current is 0.01A-6A) .

UL number: E352029





96~120W SERIES
Model Input Voltage Power Output Voltage Output Current AC Inlet
SW-00120800-S10 100-240V AC 960W 12V 8A C8,C6,C14
SW-00120830-S10 100-240V AC 100W 12V 8.3A C8,C6,C14
SW-00240500-S10 100-240V AC 120W 24V 5A C8,C6,C14
SW-00300300-S10 100-240V AC 120W 30V 4A C8,C6,C14
SW-00XXXYYY-S10 SW-00XXXYYY-S10 ( XXX=090-240 means output voltage is 9-
24V, YYY=001-600, means the output current is 0.01A-6A) .
UL number: E352029







DRAWING:

IEC60950-1 UL FCC GS CE SAA C-TICK Desktop Power Adapter DC 18V 1A 18W 0





EMC Standards & Safety Standards / EMC Standards





1.1.    EMC Standards



GB9254

GB17625.1

GB13837

FCC- Part15

EN 55022

EN55024

CISPR 22

EN 61000-4-4

      EN 61000-3-2

EN 61000-3-3

EN 61000-4-2

EN 61000-4-3

     EN 61000-4-5

EN 61000-4-6

EN 61000-4-8

EN 61000-4-11



1.2.    Safety Standards



Type

Country

Standard

Type

Country

Standard

CCC

China

GB4943

CE

Europe

EN60950-1

CCC

China

GB8898

CB

CB

IEC60950

UL/CUL

USA

UL60950-1

C-TICK

Australia

AS/NZ60950

KC

Korea

KC60950

GS/TUV

German

EN60950





Applications:



For laptop pc, computer, LCD Moniter power supply, CCTV power supply, electronic device power supply etc….





Instructions:



- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,

such as vases, shall be placed on the apparatus.

- The mains plug is used as the disconnect device, the disconnect device shall be readily operable.

- The socket-outlet shall be installed near the equipment and shall be easily accessible.

- No naked flame source, such as lighted candles, should be placed on the apparatus.

- Maximum operating ambient for the equipment is 40℃.

- The apparatus should not be used in a confined space such as a bookcase.

- This appliance is not intended for use by persons (including children) with reduced physical,

sensory, or mental capacities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their Safety.

- Children should be supervised to ensure that they do not play with the appliance.





Package information :



1. carton box dimension: 480*450*180mm
2. QTY: 50 pcs/carton
3. G.W: 11.5 KG
