Single Output LCD Display Constant Voltage LED Driver 36W 3A With Automatic Restoration

Single Output LCD Display Constant Voltage LED Driver 36W 3A With Automatic Restoration

  • Single Output LCD Display Constant Voltage LED Driver 36W 3A With Automatic Restoration
  • Single Output LCD Display Constant Voltage LED Driver 36W 3A With Automatic Restoration
  • Single Output LCD Display Constant Voltage LED Driver 36W 3A With Automatic Restoration
  • Single Output LCD Display Constant Voltage LED Driver 36W 3A With Automatic Restoration
  • Single Output LCD Display Constant Voltage LED Driver 36W 3A With Automatic Restoration
Single Output LCD Display Constant Voltage LED Driver 36W 3A With Automatic Restoration
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: DongDaHua
ได้รับการรับรอง: CE,RoHS

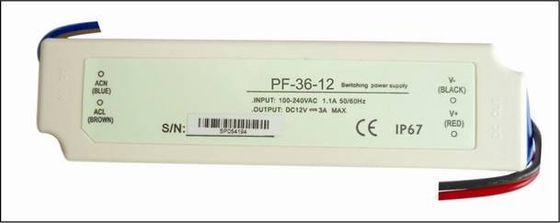

Model Number: PF-36-12
การชำระเงิน:
Minimum Order Quantity: 10
ราคา: /
Packaging Details: as for your requirement
Delivery Time: as per your order quantity
Payment Terms: TT,paypal
Supply Ability: 4000pcs/Day
ติดต่อ
รายละเอียดสินค้า
Product Name: Constant Voltage LED Driver DC output power: 36W
DC output voltage: 12V 24V Waterproof grade: IP67
Input voltage range: 110-240V AC Input frequency range: 47Hz~63Hz
แสงสูง:

waterproof led driver

,

constant voltage led drivers

Withstand 300VAC Constant Voltage LED Driver 36W 3A For Moving Sign





Features:



* constant voltage design
* Universal AC input/Full range
* Withstand 300VAC surge input for 5 seconds
* Epoxy encapsulated with IP67 level
* Protections:Short circuit/Overload/Over voltage
* Cooling by free air convection
* Small and compact size
* Fully isolated plastic case
* Suitable for LED lighting and moving sign applications
* 100% full load burn-in test
* Low cost,high reliability
* 2 years warranty



Single Output LCD Display Constant Voltage LED Driver 36W 3A For Moving Sign



Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.





Descriptions:



Parameter

Model: PF-36

DC output voltage

12V±5%

24V±5%

Rated output current

3A

1.5A

Output current range

0-3A

0-1.5A

Ripple and Noise

120mVp-p



DC output power

36W

36W

Efficiency

85%

85%

Input voltage range

110-240V AC

Short-circuit protection

Damage free short-circuit protection 3 times or more with automatic restoration

Overload protection

105-150% hiccup with automatic restoration

Temp.coefficient

±0.03%℃ ( 0-40℃ )

Voltage tolerance

Input-output range: 1.5KvAC

Working environmental temp.

-10℃~+40℃

Waterproof grade

IP67

Input frequency range

47Hz~63Hz

Storage temperature

-20℃~+85℃

Dimension

151*42*30mm

weight

0.28 kg
