| Model Number: | STA151WT-01 |
| Minimum Order Quantity: | 2kg |
|---|---|
| Packaging Details: | box/carton |
| Delivery Time: | 5-15days |
| Payment Terms: | T/T, Western Union,Paypal |
| display scale: | 4:3 | Size (Inch): | 15.1 inch |
|---|---|---|---|
| Resolution: | 1024*768 | VOLTAGE: | DC5.0V ~ 20V |
| brightness: | 500 cd/m² | interface: | RS232/RS485/TTL |
| เน้น: | industrial lcd display,rs232 lcd display |
||

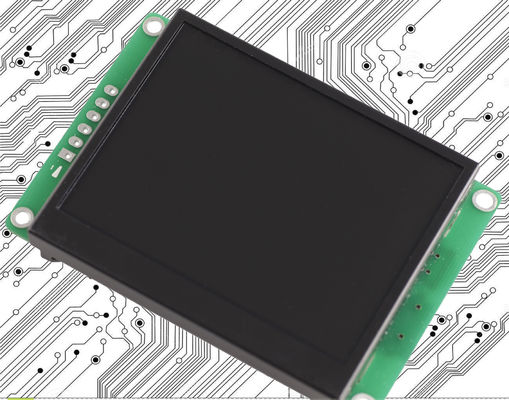

Customized TFT LCD 15.1 Inch With Power Adapter And Pcb Serial Interface
Please note: The Main controller can be designed by engineer with Any MCU.
Software Description
2. Connect your equipment with our TFT-LCD Module by RS232, RS485 port or TTL Logic directly, plug
and play.
3. Write a simple program for the MCU to control the TFT-LCD Module via powerful "Command Sets"
(HEX Code).
That's all. Saving much development Time and Cost for Engineer.
For example: Image Command 0x70.
Send: “0xAA+0x70+ Pic_ID + 0xCC 0x33 0xC3 0x3C”
|
|
Introduction |
Example |
Note |
|
AA |
Frame head |
|
Frame head of one Command |
|
0x70 |
Command Code |
|
|
|
Pic_ID |
Sequence number of the current picture |
0x00 0x01 |
Show Picture - 01 |
|
CC 33 C3 3C |
Frame end |
|
Frame end of one Command |
We would offer a simple Toolbox to help you to work with TFT-LCD Module on PC.
1. Assistant function: show how to send the Command Set to control the TFT display.
2. Download function: Download the images and configuration files into TFT Module
3. Touch Control function: Define many buttons on the User Interface, then create a touch configuration
file.
4. Font software: Create the font configuration file.
Product Parameter
Model: STA151WT-01 (Advanced Type)
|
Physical Parameter |
|
|
Model |
STA151WT-01 |
|
Size (Inch) |
15.1" |
|
Resolution |
1024×RGB×768 |
|
Pixel Spacing |
0.1905 mm × 0.0635 mm(H×V) |
|
Color |
65536 colors (16 bit) |
|
Viewing Area |
304.1 mm × 228.1 mm |
|
Overall Dimension |
384.5 mm × 255.9 mm × 26 mm(N)/ 28.3 mm(T) |
|
Net Weight |
1255 g(N)/ 1635 g(T) |
|
TFT Panel |
A+ Level Industry Panel |
|
Touch Screen |
Industry Level 4 wire resistance Or without touch screen is optional. |
|
Backlight Parameter |
|
|
Backlight Type |
LED |
|
Brightness |
500 cd/m2 (Brightness can be adjustable in 100 levels.) |
|
Contrast |
500:1 |
|
Backlight life |
50,000 hours |
|
Viewing Angle |
80°/ 80°/ 80°/ 80° (L/R/U/D) |
|
Working Temperature |
-20°C ~ +70°C |
|
Working Humidity |
55°C, 85% |
|
Storage Temperature |
-30°C ~ +80°C |
|
Screen Mode |
Digital |
|
Performance Parameter |
|
|
CPU |
CortexM3 STM32F103 |
|
LCD Controller |
CPLD EPM240 |
|
Refresh Rate |
60Hz |
|
Picture Switching Speed |
80 ms/picture (12 pictures/s) |
|
Flash Memory |
Standard 256m, Extension 2GB |
|
Memory Amount for picture |
151 images |
|
Interface |
RS232/ RS485/ TTL UART Interface |
|
Pictures downloading |
MiniUSB2.0 (12Mbps) & SD card |
|
Voltage Range |
DC5.0V ~ 20V (typical value: 12V) |
|
Power |
12W |
|
Test Report |
|
|
MTBF |
4,250,000H |
|
Working Temperature |
-20°C ~ +70°C |
|
Air Humidity |
60°C, 90% |
|
Continuous Vibration Testing |
10-55Hz, 1.5mm, 10G |
|
Impact Acceleration Testing |
6ms, 100G |
|
ESD Testing |
10KV |
|
Radiation Reliability Testing |
44W |
Advantages
|
With CPU & Driving Device |
|
Controlled by Any MCU |
|
Display Picture/ Text/ Curve via Commands |
|
65536 colour TFT display |
|
Touch Screen |
|
RS232/ RS485/ TTL UART Interface & USB port |
|
Wide voltage range |
|
Widely Used in many various Industrial Field |
|
Easy to Use! Powerful Function! Saving Cost and Time! |
|
Used as Touch-controller, TFT-LCD display system, etc. |
Easy!!! Powerful!!! Saving!!!
The Intelligent TFT-LCD Module can be controlled by Any MCU through our Powerful & Easy Command
Set (HEX Code), So
many of engineer in more than 50 countries enjoy our Product for new project.
|
Size |
Resolution |
|
3.5" |
320*240 |
|
4.3" |
480*272 |
|
5" |
640*480; 480*272; 800*480 |
|
5.6" |
640*480 |
|
5.7" |
640*480 |
|
7" |
800*480; 800*600; 1024*600 |
|
8" |
800*600; 800*480; 1024*768 |
|
8.4" |
800*600 |
|
10.1" |
1024*600 |
|
10.4" |
800*600 |
|
12.1" |
800*600 |
|
15.1" |
1024*768 |
Appliaction
Widely Used In Many Various Industrial Field in more than 50 Countries.
